Pen Tool (deprecated)

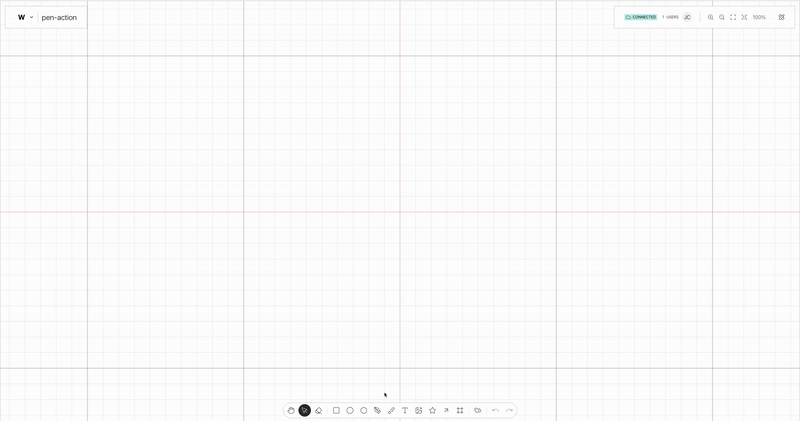

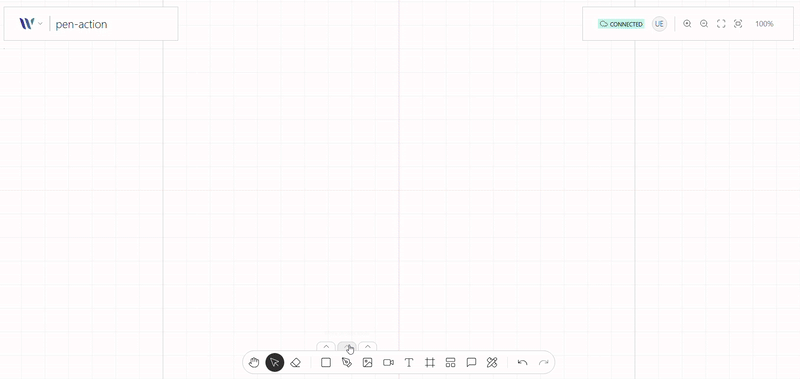

Pen Tool action on use on the Weave.js showcase

Introduction

This action allows users to draw continuos lines on the canvas with N segments, by clicking N times to define the N segments. This tool is ideal for sketching, annotating, or creating custom shapes.

Each line is captured as a Line Node with configurable styling, and is instantly synchronized across all connected users.

Dependencies

This action needs registered on the Weave instance the following elements:

Line node

Usage

Import the Action

Start by importing the action:

import { WeavePenToolAction } from "@inditextech/weave-sdk";

Register the Action

Then register the action on the Weave class instance.

const instance = new Weave({
  ...
  actions: [
    ...,
    new WeavePenToolAction(),
  ]
})

Setup the action trigger

Setup on a button or any element on the UI the user can interact with on the action event:

instance.triggerAction("penTool");

For example on a button on React:

import React from "react";
import { useWeave } from "@inditextech/weave-react";

const MyPenToolTriggerComponent = () => {
  const instance = useWeave((state) => state.instance);

  const triggerTool = React.useCallback(() => {
    instance.triggerAction("penTool");
  }, [instance]);

  return <button onClick={triggerTool}>Pen Tool</button>;
};

Trigger the action

Finally a final user trigger the UI element that launches the action.

When active the user will iterate on the following steps:

Click or Touch on the canvas, to define a line segment start point.
Click or Touch again on the canvas, to define the line final segment point.

When the user is satisfied with the line segments:

On non-touch devices, press the
Enter
or
Esc
keys.
On touch devices, trigger the Selection Tool.

Then the line with the N defined segments is added to the canvas as a fully functional node—ready. This action integrates seamlessly with Weave.js's real-time state system, ensuring the new element appears instantly for all connected users.
