Text Tool

Introduction

This action allows users to add new text nodes to the canvas by clicking or touching on it. Once placed, the node becomes immediately editable, enabling users to type inline and customize the content.

This action is perfect for adding labels, annotations, or descriptions in collaborative environments. Created text nodes are fully interactive, styleable, and synchronized across all connected users in real time.

Dependencies

This action needs registered on the Weave instance the following element:

Text node

Usage

Import the Action

Start by importing the action:

import { WeaveTextToolAction } from "@inditextech/weave-sdk";

Register the Action

Then register the action on the Weave class instance.

const instance = new Weave({
  ...
  actions: [
    ...,
    new WeaveTextToolAction(),
  ]
})

Setup the action trigger

Setup on a button or any element on the UI the user can interact with on the action event:

instance.triggerAction("textTool");

For example on a button on React:

import React from "react";
import { useWeave } from "@inditextech/weave-react";

const MyTextToolTriggerComponent = () => {
  const instance = useWeave((state) => state.instance);

  const triggerTool = React.useCallback(() => {
    instance.triggerAction("textTool");
  }, [instance]);

  return <button onClick={triggerTool}>Text Tool</button>;
};

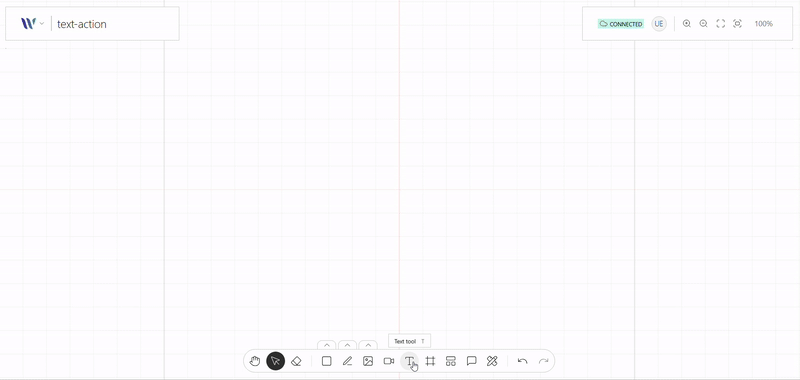

Trigger the action

Finally a final user trigger the UI element that launches the action.

When active the user can:

Click on the canvas, it will create a new text node.

After the node is added it can be edited by double-click or double-touch on it.
