Frame Tool

Introduction

This action allows users to create frame nodes by clicking and position the frame on the canvas. A frame acts as a visual container for organizing other nodes, often used to group related content, define sections, or build modular layouts.

Dependencies

This action needs registered on the Weave instance the following elements:

Frame node

Usage

Import the Action

Start by importing the action:

import { WeaveFrameToolAction } from "@inditextech/weave-sdk";

Register the Action

Then register the action on the Weave class instance.

const instance = new Weave({
  ...
  actions: [
    ...,
    new WeaveFrameToolAction(),
  ]
})

Setup the action trigger

Setup on a button or any element on the UI the user can interact with on the action event:

instance.triggerAction("frameTool");

You can also optionally pass information to the tool as:

Frame title.
Frame width and height (this disable the creation of a frame by click-and-drag).
Frame orientation (portrait or landscape).

To lean more check the WeaveFrameToolAction plugin API.

For example on a button on React:

import React from "react";
import { useWeave } from "@inditextech/weave-react";

const MyFrameToolTriggerComponent = () => {
  const instance = useWeave((state) => state.instance);

  const triggerTool = React.useCallback(() => {
    instance.triggerAction("frameTool");
  }, [instance]);

  return <button onClick={triggerTool}>Frame Tool</button>;
};

Trigger the action

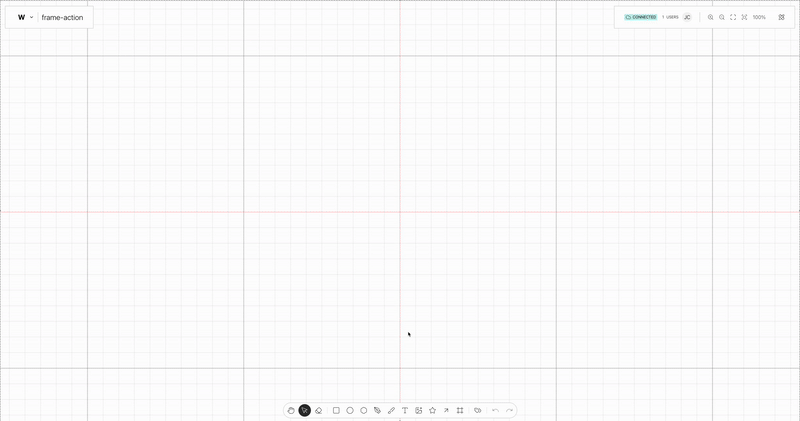

Finally a final user trigger the UI element that launches the action.

When active the user:

Click on an empty stage space to add a frame.
Click-and-drag to create a frame with custom size (if enabled).

Then the frame is added to the canvas as a fully functional node—ready. This action integrates seamlessly with Weave.js's real-time state system, ensuring the new element appears instantly for all connected users.
