Brush Tool

Paint freeform strokes on the canvas

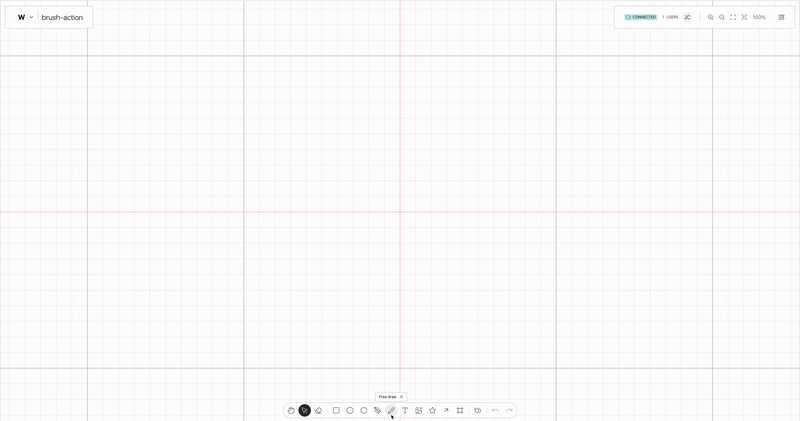

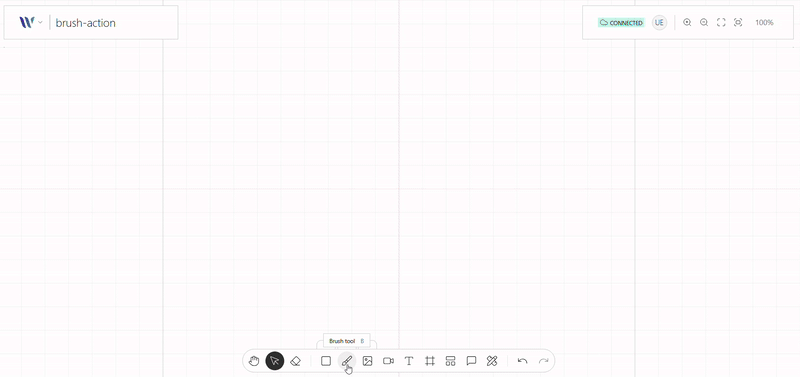

Brush Tool action on use on the Weave.js showcase

Introduction

This action enables users to paint freeform strokes on the canvas, similar to a digital brush. Unlike the Pen Tool action, which focuses on clean vector lines, the WeaveBrushToolAction emphasizes style, thickness, and expressive drawing, creating Line nodes with a more natural, hand-drawn feel.

It’s ideal for sketching, highlighting, or adding visual flair to collaborative sessions.

Dependencies

This action needs registered on the Weave instance the following elements:

Usage

Import the Action

Start by importing the action:

import { WeaveBrushToolAction } from "@inditextech/weave-sdk";

Register the Action

Then register the action on the Weave class instance.

const instance = new Weave({
  ...
  actions: [
    ...,
    new WeaveBrushToolAction(),
  ]
})

Setup the action trigger

Setup on a button or any element on the UI the user can interact with on the action event:

instance.triggerAction("brushTool");

For example on a button on React:

import React from "react";
import { useWeave } from "@inditextech/weave-react";

const MyBrushToolTriggerComponent = () => {
  const instance = useWeave((state) => state.instance);

  const triggerTool = React.useCallback(() => {
    instance.triggerAction("brushTool");
  }, [instance]);

  return <button onClick={triggerTool}>Brush Tool</button>;
};

Trigger the action

Finally a final user trigger the UI element that launches the action.


When active the user:

  • Click-press or Touch-press on the canvas, to define a brush line.

Then the freeform line is added to the canvas as a fully functional node—ready. This action integrates seamlessly with Weave.js's real-time state system, ensuring the new element appears instantly for all connected users.
