Export Stage Tool

Introduction

This action allows users to capture and download the current canvas Stage view as an image file (jpeg, png or gif). It takes a snapshot of the entire Stage where are nodes are visible, preserving the visual state of nodes, styling, and layout.

Dependencies

This action needs also registered on the Weave instance the following:

Nodes selection plugin

Usage

Import the Action

Start by importing the action:

import { WeaveExportStageToolAction } from "@inditextech/weave-sdk";

Register the Action

Then register the action on the Weave class instance.

const instance = new Weave({
  ...
  actions: [
    ...,
    new WeaveExportStageToolAction(),
  ]
})

Setup the action trigger

Setup on a button or any element on the UI the user can interact with on the action event:

instance.triggerAction("exportStageTool", {
  options: {
    padding: 20, // the exported stage image should have a 20px padding
    pixelRatio: 2, // the exported stage image should have 2x resolution
  },
});

For example on a button on React:

import React from "react";
import { useWeave } from "@inditextech/weave-react";

const MyExportStageToolTriggerComponent = () => {
  const instance = useWeave((state) => state.instance);

  const triggerTool = React.useCallback(() => {
    instance.triggerAction("exportStageTool", {
      options: {
        padding: 20,
        pixelRatio: 2,
      },
    });
  }, [instance]);

  return <button onClick={triggerTool}>Export Node Tool</button>;
};

Trigger the action

Finally a final user trigger the UI element that launches the action.

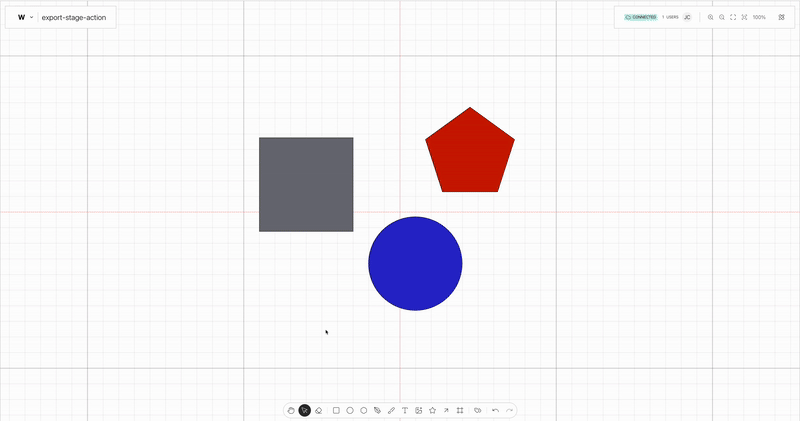

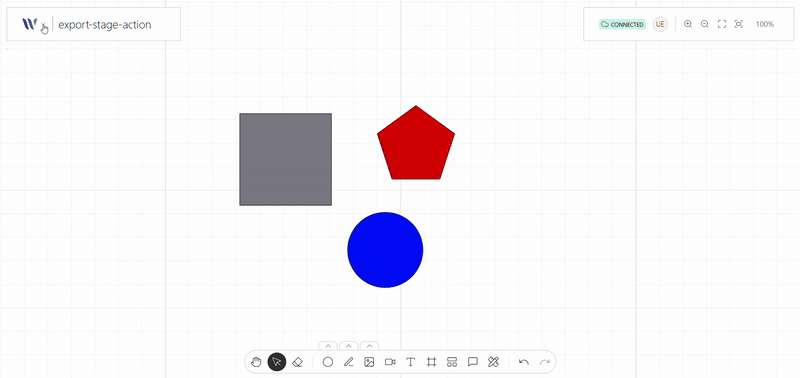

When triggered fit all the nodes of the canvas in the viewport, center on its and then proceed to generate an image from it. Allowing to download it.
