Copy & Paste Nodes

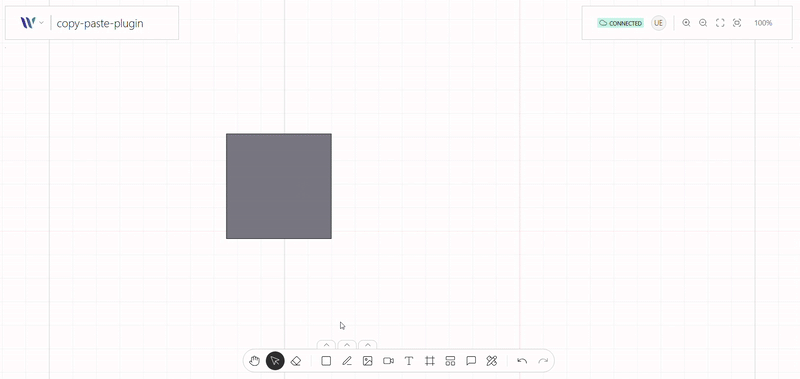

Copy & Paste plugin on use on the Weave.js showcase

Introduction

This plugin enables users to copy & paste selected nodes.

Using familiar keyboard shortcuts like Ctrl / Cmd + C and Ctrl / Cmd + V, or through options in a context-menu. It preserves node structure, styles, and metadata, allowing for quick reuse and layout iteration.

Supports multi-node copy & copy & paste between tabs. It integrates seamlessly with the selection and action systems, making it a natural part of the collaborative editing workflow.

Usage

Import the Plugin

Start by importing the plugin:

import { WeaveCopyPasteNodesPlugin } from "@inditextech/weave-sdk";

Register the Plugin

Then register the plugin on the Weave class instance.

const instance = new Weave({
  ...
  plugins: [
    ...,
    new WeaveCopyPasteNodesPlugin(), (1)
  ]
})

1	Added in this step.

Use the plugin

Once the plugin is registered final users can now copy & paste nodes freely, but the copy & paste mus be triggered using the API provided by the plugin.

Public API

To copy just select a node (or nodes), and trigger the copy() function:

const copyPastePlugin =
  this.instance.getPlugin<WeaveCopyPasteNodesPlugin>("copyPasteNodes");
if (copyPastePlugin) {
  await copyPastePlugin.copy();
}

To paste, after copy something to the clipboard just trigger the paste() function:

const copyPastePlugin =
  this.instance.getPlugin<WeaveCopyPasteNodesPlugin>("copyPasteNodes");
if (copyPastePlugin) {
  copyPastePlugin.paste();
}

To learn more check the WeaveCopyPasteNodesPlugin plugin.

Events

You can also add some listeners with the Weave instance Events API that listen to the following provided events:

onCopy: triggers when an user copy something onto the clipboard.

// Import types
import type {
  WeaveCopyPasteNodesPlugin,
  WeaveCopyPasteNodesPluginOnCopyEvent,
} from "@inditextech/weave-sdk";

instance.addEventListener<WeaveCopyPasteNodesPluginOnCopyEvent>(
  "onCopy",
  () => {
    console.log("copy operation performed");
  }
);

onPaste: triggers when an user paste something from the clipboard onto the stage.

// Import types
import type {
  WeaveCopyPasteNodesPlugin,
  WeaveCopyPasteNodesPluginOnPasteEvent,
} from "@inditextech/weave-sdk";

instance.addEventListener<WeaveCopyPasteNodesPluginOnPasteEvent>(
  "onPaste",
  () => {
    console.log("paste operation performed");
  }
);

onPasteExternal: triggers when an user paste something from external sources (not from the same application).

You receive an object as parameter with: position: a Vector2d element, that represents the position on the stage that user pasted. item: a ClipboardItem structure with the elements on the clipboard.

// Import types
import type {
  WeaveCopyPasteNodesPlugin,
  WeaveCopyPasteNodesPluginOnPasteExternalEvent,
} from "@inditextech/weave-sdk";

instance.addEventListener<WeaveCopyPasteNodesPluginOnPasteExternalEvent>(
  "onPasteExternal",
  ({ position, item }) => {
    console.log("external paste operation performed");
    console.log("you're responsible to add something external to the app.");
  }
);
