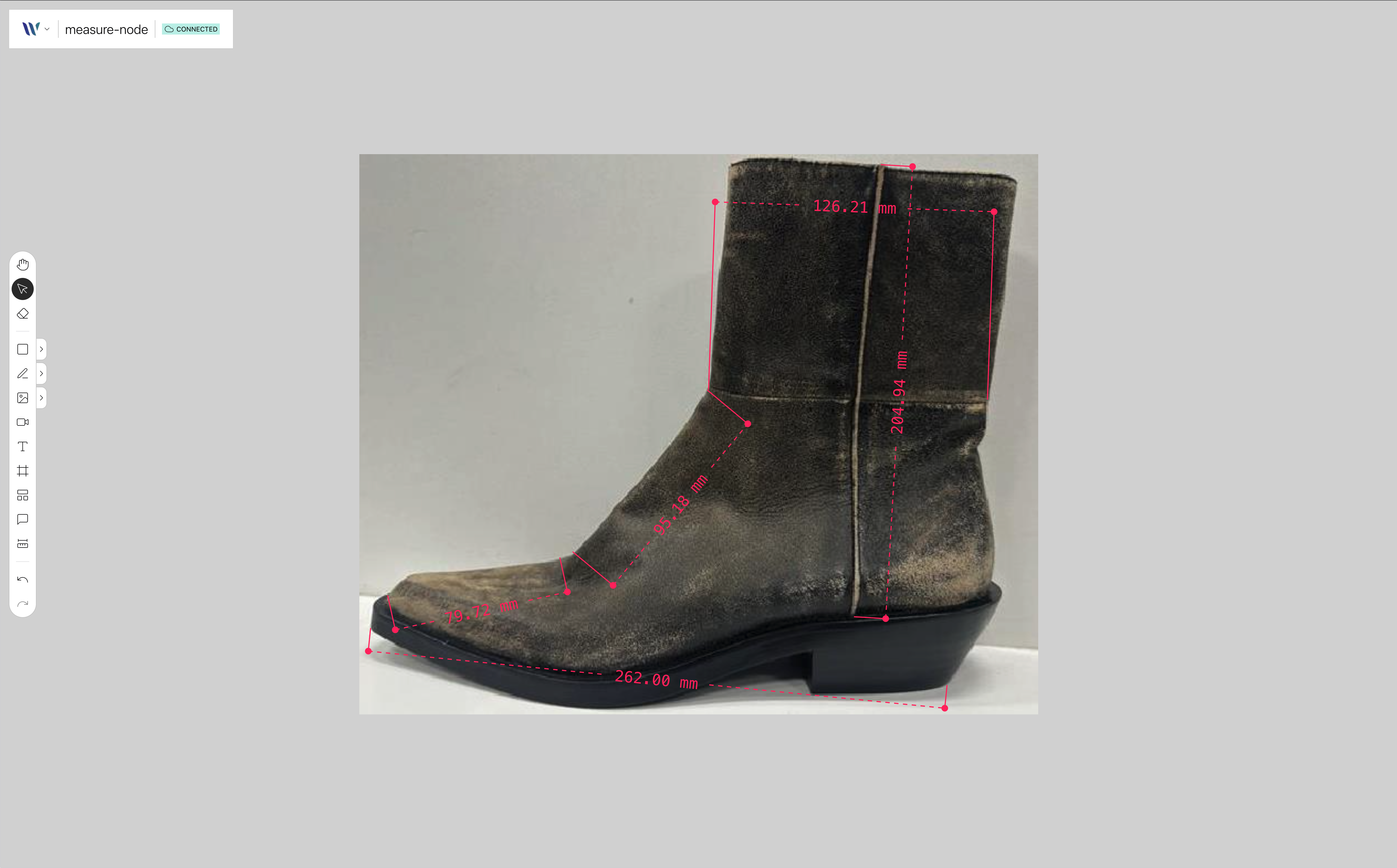

The Measure node is a complex node used to render a representation of the the distance between two points on the canvas. It needs:

A measure unit, e.g. meters, centimeters, milimeters, or inches.
A reference measure. A distance you previously know based on the measure unit.
A reference distance. The distance between two points on the canvas that represent the reference measure.

Usage

Start by importing the node:

import { WeaveMeasureNode } from "@inditextech/weave-sdk";

Then register the node on the Weave class instance.

const instance = new Weave({
  ...
  nodes: [
    ...,
    new WeaveMeasureNode(), (1)
  ]
})

1	Added in this step.

Once the node is registered you can use it on Actions or Plugins or even other Nodes.

We provide an action named Measure Tool that allows users to add Measure nodes to the application in a simple way.
