Users Presence

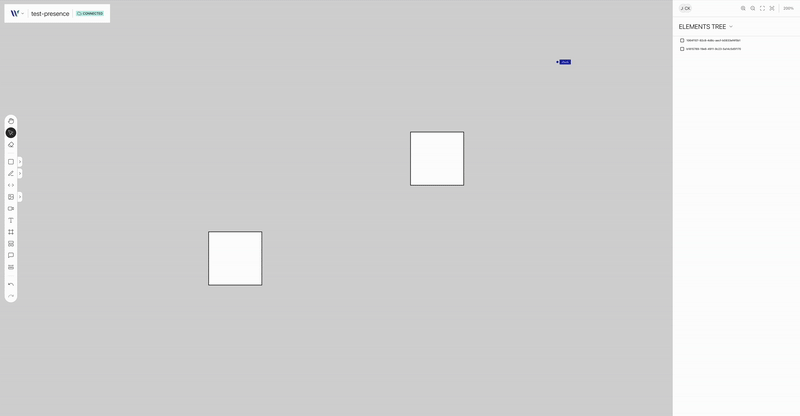

Users showcase plugin on use on the Weave.js showcase

Introduction

This plugin displays in real-time what connected users are doing on the canvas. For example when an user drags/moves an element, the dragging movement will be displayed, and not just the final result of the user operation.

As today we support:

Dragging of nodes
Transforming of nodes

Usage

Import the Plugin

Start by importing the plugin:

import { WeaveUsersPresencePlugin } from "@inditextech/weave-sdk";

Register the Plugin

Then register the plugin on the Weave class instance.

const getUser = () => {
  id: 'user-id',
  email: 'useremail@corp.com',
  name: 'User'
}

const instance = new Weave({
  ...
  plugins: [
    ...,
    new WeaveUsersPresencePlugin({
      config: {
        getUser,
      },
    }),
  ]
})

Use the plugin

Once the plugin is registered if more than one users are connected to the room, instance, users will be able to see the other users operations in real-time, and the others users can see theirs.
