Deployment view

This page describes how Kumoss’s containers are deployed on one Docker Compose stack, the operational notes that follow from that topology, and the architectural characteristics that result from the decisions described across this section.

Infrastructure diagram

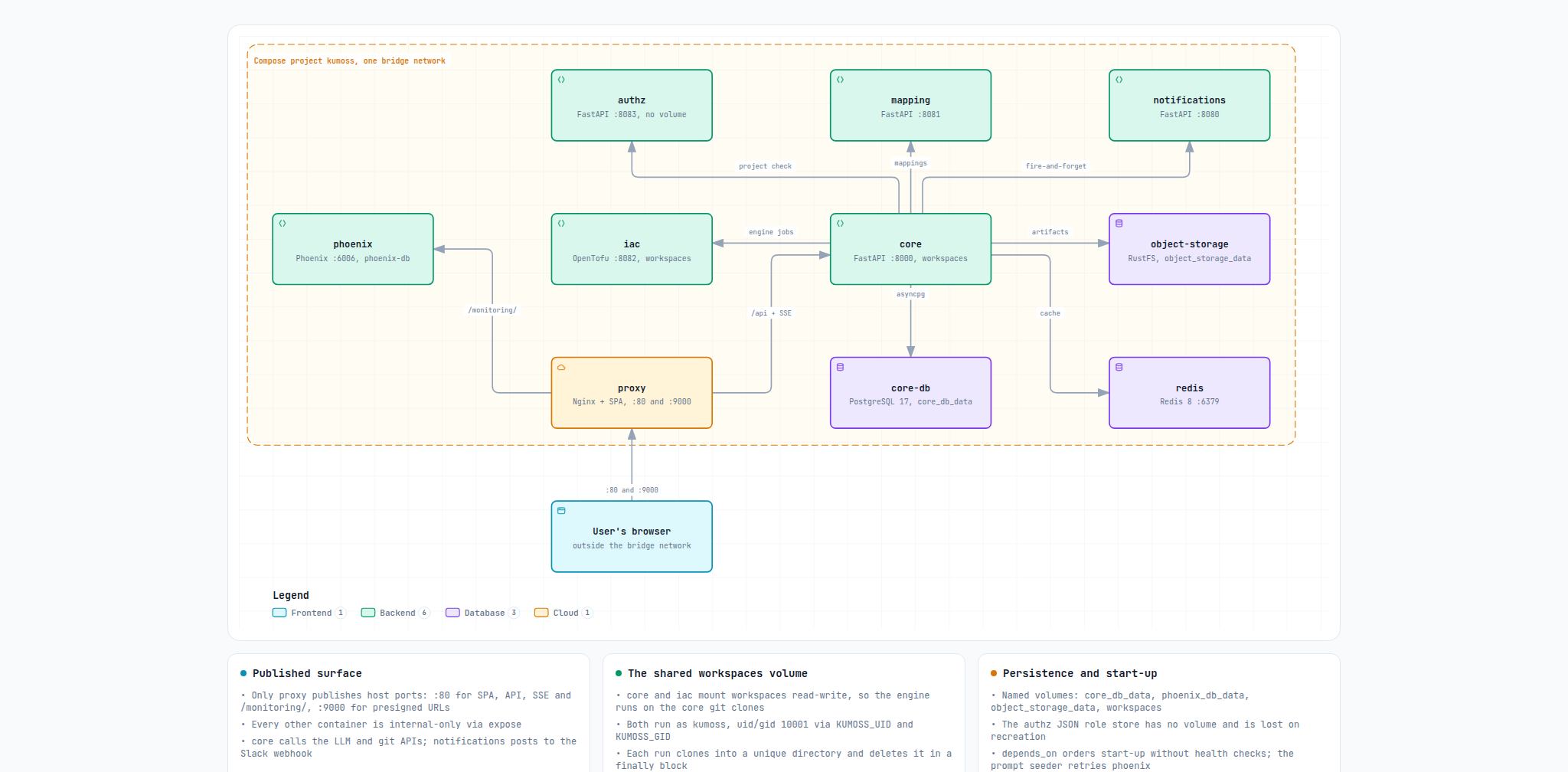

The block diagram below shows the deployment topology: every container in the Compose project, the host ports published by the proxy, and the calls between them. The user’s browser sits outside the bridge network on purpose.

Kumoss Compose deployment topology: the stack’s containers on one bridge network, with only the proxy publishing host ports and the user’s browser outside the network

Pan, zoom, search, trace a relationship, switch themes. Open in a new tab

Named volumes are written into each container’s subtitle instead of being drawn as separate nodes (core_db_data, phoenix_db_data, object_storage_data, and workspaces), and phoenix-db is folded into the phoenix node, so the eleventh container of the stack is not a box of its own. Two edges are left out because the system architecture diagram already carries them — the core’s OTLP traces and prompt calls to Phoenix, and the proxy’s port 9000 path to object storage — and the connections that leave the stack (LLM and git provider APIs from the core, the Slack webhook from notifications) appear in the notes beside the diagram rather than as external nodes.

Only the proxy publishes host ports; all other containers are reachable solely on the internal network. The workspaces volume is the one mount shared by two containers (core and iac), which is what lets the iac service run the IaC engine against the core’s git clones. Both containers run as the same unprivileged user (kumoss, uid/gid 10001, fixed by the KUMOSS_UID/KUMOSS_GID build args) so files either one creates are writable by the other. Additional Compose hardening for the iac container (dropping all capabilities, no-new-privileges, a read-only root filesystem, and CPU/memory/pid limits) was prototyped but is not present in the checked-in docker-compose.yml; it remains a recommended deployment hardening because the container executes provider code from generated HCL.

Operational notes

The Compose stack described here is the local/non-production deployment model and the reference topology for production; the repository ships no Kubernetes manifests or Helm charts.

Topology

All eleven containers share one Docker bridge network. Only proxy publishes host ports: 80 (SPA, API, SSE, monitoring) and 9000 (presigned object-storage access); every other service is internal-only via expose.
Compose depends_on orders start-up (it does not health-check): core waits for core-db, Redis, object storage, and all four sidecars; the proxy waits for core, Phoenix, and object storage. The core has no Compose dependency on Phoenix, which is why its prompt seeder retries.
Four named volumes persist state: core_db_data, phoenix_db_data, object_storage_data, and workspaces. The authz sidecar’s JSON role store has no volume and does not survive container recreation.

Core start-up

The FastAPI lifespan enforces a strict order: database, then Redis, then object-storage bucket creation, then Phoenix prompt seeding. Failure of any step aborts boot. Git credential configuration follows and is best-effort.
Configuration comes from a single config.yaml, baked into the image at /etc/kumoss/config.yaml by the core Dockerfile, so changes require an image rebuild unless KUMOSS_CONFIG points at a file mounted elsewhere in the container.
Secrets never appear in the file: *env fields name environment variables (database URL, service bearer tokens, storage keys, git personal access token), and the core validates at boot that every enabled service’s token and every referenced LLM credential resolves. Each KUMOSS<SERVICE>_TOKEN must match between the core’s outbound client and the sidecar’s inbound validation.
Authentication needs no secret: the oidc block and admin.default_root_email are plain configuration that Pydantic validates at load, so an issuer_url without a client_id fails the boot; discovery and JWKS are fetched lazily on the first request, so a wrong or unreachable issuer surfaces as a 401 at first login, not at boot. Operationally, what matters here is that enabling or changing OIDC means docker compose build core, and that the IdP must have <origin>/auth/callback registered as the SPA redirect URI.

Operational limits and single-instance assumptions

The stack is designed as one core process. These are the consequences to plan for before running more than one:

Runs are in-process background tasks. A core crash or restart mid-run leaves sessions.in_flight = true with no lease and no expiry, and the compare-and-set will refuse the session for ever; recovery is a manual UPDATE sessions SET in_flight = false.
The workspaces volume must be shared and persistent across replicas. A pinned plan lives on disk at /workspaces/<session>/pinned, so an apply routed to a replica that did not run the generate round finds no pinned plan and fails the session.
Only the PostgreSQL compare-and-set is replica-safe. Redis holds no locks; its single-flight registry is an in-process asyncio.Lock per key, so it de-duplicates cache misses within one process only.
Static storage credentials are rendered in plaintext into backend_override.tf on the shared volume when Kumoss-managed state is used with access/secret keys or an Azure account key. Prefer credential chains or workload identity where the provider allows it.
One Git identity for every user. All pushes and pull requests use the single PAT in GIT_TOKEN, and commits are authored, by default, as Kumoss <kumoss@noreply.invalid> (git.author_name / git.author_email), so repository history attributes nothing to the requesting user — the session record in core-db is the audit trail.
The artifact proxy on port 9000 answers Access-Control-Allow-Origin: *. Presigned URLs are the only access control on that port.

Architectural characteristics

Ports and adapters. Domain services depend on interfaces, infrastructure adapters implement them, and a per-run factory wires the object graph explicitly, so LLM providers, git hosts, Terraform execution, and storage backends are replaceable through configuration alone.
Contract-first sidecars. OpenAPI specifications are the authoritative boundary, with generated clients on one side and intentionally minimal reference implementations on the other, inviting substitution in enterprise deployments.
Deliberately direct execution. Pipelines run as in-process background tasks with a database compare-and-set as the only concurrency control; sidecar calls are synchronous HTTP with job polling rather than event-driven messaging; SSE progress derives from status polling. These are visible trade-offs, not accidents.
Deep, centralized telemetry. Model calls, tool executions, and engine runs are traced to Phoenix, which doubles as the runtime prompt registry, making prompt management an operational concern rather than a code change. No tracing decorator exports anything when the wrapped call raises: most of them build the span only after the call returns, and the chain decorator, which does create its span first, never ends it on an exception. Failures are therefore visible in the logs and the session status, not as error spans, and the sidecars are not instrumented at all.
LLM audits LLM, code decides. The compliance auditor is a separate agent loop with no repository access at all — its only tool is the sentinel report_compliance_findings; the pass/fail verdict is computed deterministically from the structured violations it reports, and the resulting database lock is what actually stops a non-compliant plan from being applied.
Stateless, local identity. The core trusts only a signed JWT from the single configured issuer, validates it on every request without an introspection round-trip, and keeps users, roles, and session ownership in its own database, so federation, MFA, and session policy stay the identity provider’s concern.
