End-to-end flow

The ten phases of one generate session, from request to applied infrastructure, and the mechanisms behind them.

One generate session, from request to applied infrastructure, in ten phases across five sequence diagrams. Each diagram shows only the participants its phases use; the legend lists them and the arrow conventions.

Every step that changes state or blocks progress belongs to the control gates on purpose: models propose, code decides.

Phases 1 and 2: request and session

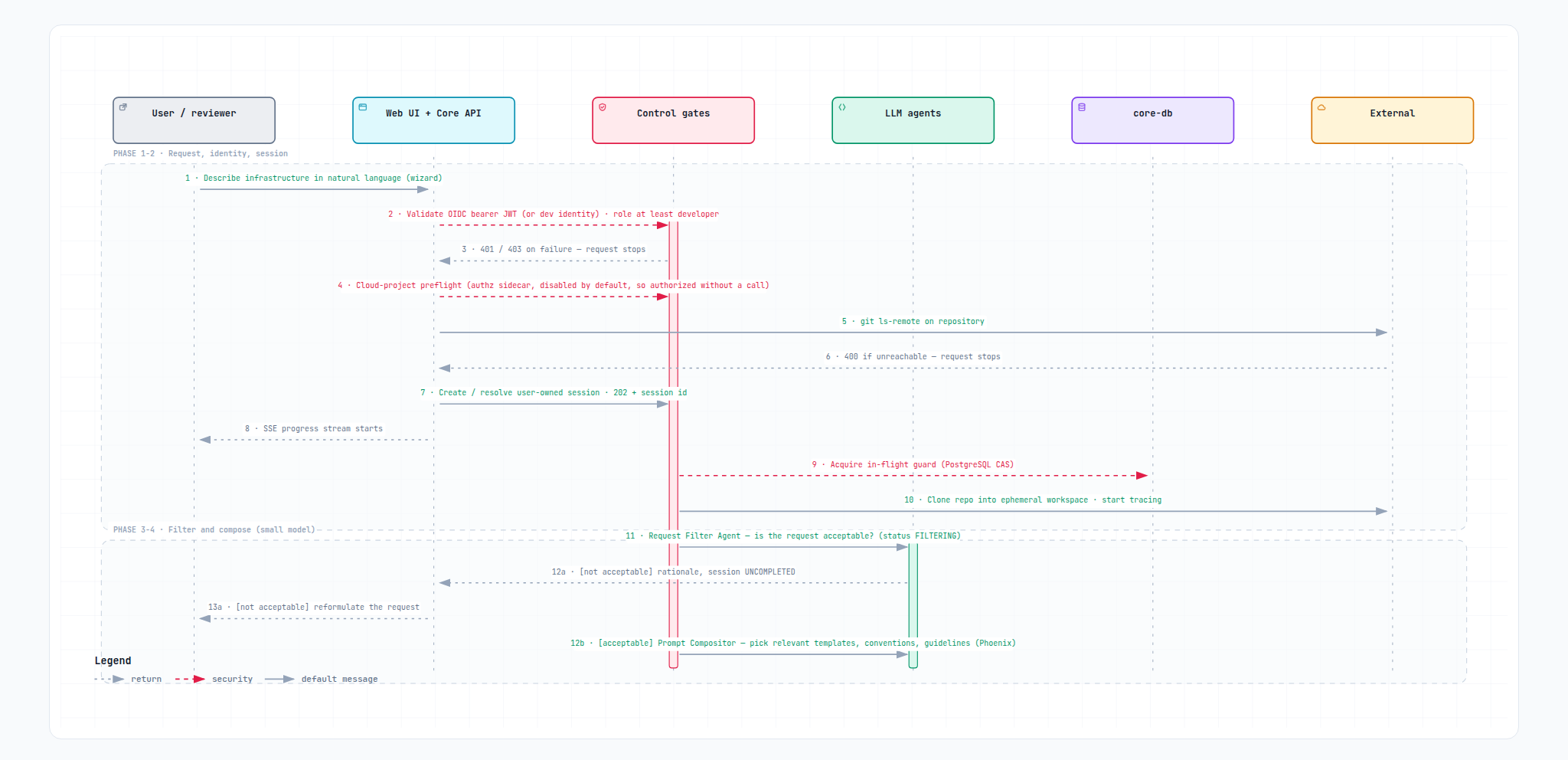

Kumoss request flow, phases 1 to 4: request, identity, session, then filter and compose

Pan, zoom, search, follow a message, switch themes. Open in a new tab

Messages 1 to 13; the diagram also covers phases 3 and 4.

Step What happens

Request

The wizard posts repository URL, target cloud, scope id, optional IaC path and request text to POST /api/v1/iac/generate with a bearer token. The IaC path is one of the Terraform roots POST /api/v1/repository/parse found in a metadata-only clone (a git ls-tree heuristic over .tf directories).

Identity and role

The authentication dependency validates the bearer JWT, or resolves the fixed local-developer identity when auth is disabled, and the role check requires developer: 401 or 403 otherwise. The wizard has separately asked the authz sidecar whether the user may work on that cloud project. See Authentication and Authorization and ownership.

Repository reachability

The URL must be https:// with a host — SSH (git@host:path, ssh://), git://, http://, file:// and local paths are rejected with 422 by a request-model validator. It may carry a userinfo username (the <org>@ prefix of an Azure DevOps clone URL) but must not embed a password or token — also 422, an empty user: password included. Then git ls-remote must succeed: unreachable, rejected or timed out → 400 with the fixed detail "Repository is not reachable or access was denied."; git’s own output goes only to the core log. Either way no session is created.

Session creation

A session row owned by the caller is created, or an existing one resolved by session_id with ownership asserted; a round opens and the API answers 202 Accepted with the session id. Everything from here runs as an in-process background task.

Progress stream

The UI subscribes to GET /api/v1/events/subscribe/{session_id} and receives status events every 4-5 seconds until a terminal status.

Guard, workspace, tracing

The runner takes the in-flight guard, an atomic compare-and-set on the session row. The 202 has already been sent, so a concurrent request is never refused with 409: the runner that loses logs runner not started: Session …​ already has an operation in flight and returns without touching the session. It then clones into /workspaces/<session>/<call> on the volume shared with the iac sidecar, pushes the branch Kumoss/YYYY-MM-DD_HHMMSS (UTC), and installs the per-session Phoenix tracer.

Phases 3 and 4: filter and compose

Step What happens

Request Filter Agent (filtering)

The small model, with read-only workspace tools, classifies the request against the general-guidelines-requests and <cloud>-guidelines-forbidden_actions prompts. A change request proceeds; a question is answered in the conversation; an out-of-scope, prohibited or ambiguous request is declined with a rationale. In the last two cases the round ends uncompleted and the user is invited to reformulate — the session itself stays usable.

Prompt Compositor

Two small-model passes select the relevant resource templates and abbreviations from the cloud’s resources_list and abbreviations prompts in Phoenix, then look for dependencies among them. The result is the round’s conventions, which every later agent is rendered with.

Phase 5: generate, validate, correct

Up to orchestration.max_validation_iteration generate-and-validate iterations: 5 in the shipped config.yaml, 8 built in.

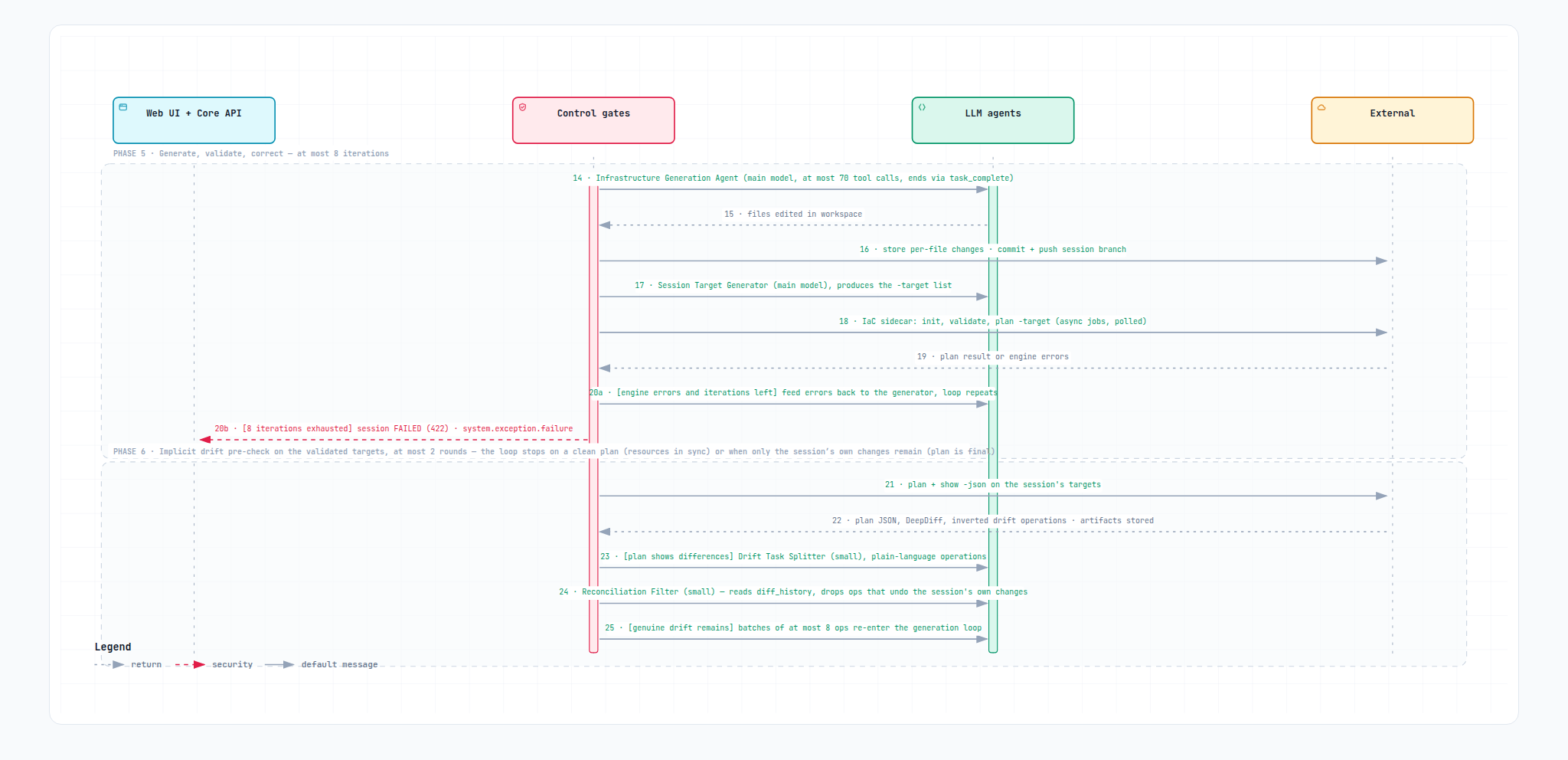

Kumoss request flow, phases 5 and 6: generate, validate, correct, then the implicit drift pre-check

Pan, zoom, search, follow a message, switch themes. Open in a new tab

Messages 14 to 25; the diagram also covers phase 6.

Step What happens

Infrastructure Generation Agent (generating)

The main model edits Terraform files through the tool registry (read, write, list, ripgrep search, web search), confined to the session’s IaC root and bounded by orchestration.max_tool_agent_executions (40) model turns — the same bound every agent loop shares — and terminated by the sentinel task_complete tool. The guards that keep the loop inside its budget are described in Agent tool loop.

Persist and push

Every changed or new file is uploaded as a code-change artifact and committed and pushed to the session branch, so the work is durable before validation starts.

Session Target Generator

The main model derives this round’s -target list from the branch’s diff history, so the plan covers what the round changed rather than the whole root module.

Validation (validating)

init, validate and plan -out session.plan -target …​ are submitted to the iac sidecar as asynchronous jobs, each polled every services.iac.job_poll_interval seconds within services.iac.job_timeout. The engine (OpenTofu by default) runs against the shared workspace with the cloud credentials in services/iac/.env.

Correct or fail

Engine errors go back to the generation agent as the next query and the loop repeats. After orchestration.max_validation_iteration (5 shipped) failures the round ends FAILED, the branch keeps the last pushed attempt, and the session is closed for good.

Phase 6: implicit drift pre-check

Runs on the targets validation has just produced, at most twice.

Step What happens

Inspect the plan

Status reconciling. The core runs show -json on the plan artifact validation left in the workspace — the round’s own plan, never a second one — and inverts the before/after differences into "make the code match the infrastructure" operations, stored as a drift artifact. When the targets are already in sync the plan output is stored instead, as a plan artifact, so every iteration leaves one artifact behind.

Split and filter

The Drift Task Splitter (main model) turns the differences into plain-language operations, the Reconciliation Filter (small model) reads the branch’s diff_history and drops every operation that would merely undo the session’s own intended changes, and the Drift Exception Filter (small model) then drops every operation the cloud’s drift_exceptions rules cover, logging what it removed.

Decide

Genuine drift re-enters the generation loop in batches of orchestration.drift_group_operations (8) with the forbidden-actions block omitted, and the pre-check runs once more. If only the session’s own changes remain, or the plan is clean, the pre-check stops and the last plan is final. If genuine drift is still there after the second iteration, the round continues to the report anyway: a warning is logged and the drift is re-read from the last remediation batch’s plan, so the report and the pinned plan agree. A remediation batch that exhausts its own validation attempts fails the round instead.

Full mechanism, including the fingerprint that makes reading an existing plan safe: Drift detection and remediation.

Phase 7: report and artifacts

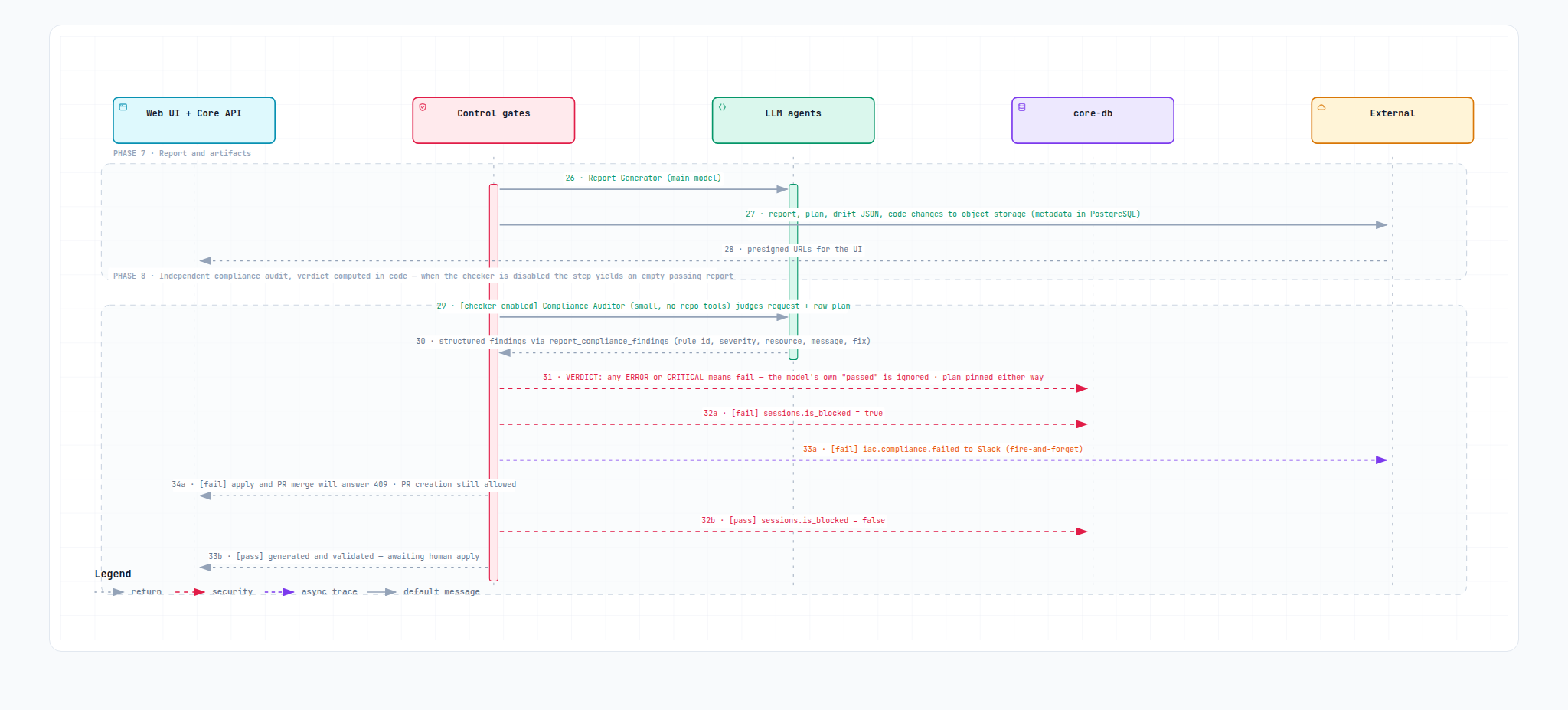

Kumoss request flow, phases 7 and 8: report and artifacts, then the independent compliance audit

Pan, zoom, search, follow a message, switch themes. Open in a new tab

Messages 26 to 34; the diagram also covers phase 8.

Step What happens

Report Generator (report)

The main model turns the final plan into a JSON report: create, update, delete and recreate counts, detailed changes, an impact banner (low, medium, high) assigned with the general-compliance-impact criteria, and cost estimates.

Artifacts

Report, plans, drift JSON and code changes go to object storage under sessions/<session>/rounds/<round>/, where <round> is the round’s database primary key, not its ordinal in the session. The key patterns are reports/<report type>-<token>.json, plans/plan-<token>.txt, plans/drift-<token>.txt and changes/<token>-<sanitized file name>. Metadata goes to PostgreSQL; the UI receives presigned URLs.

Phase 8: compliance audit

Step What happens

Compliance Auditor

With orchestration.enable_compliance_checker on, a second, independent small-model agent reads the session’s first request and the raw plan output — not the report JSON — alongside the general-compliance-report rules and the cloud guidelines. It has no repository tools and must answer through its only tool, report_compliance_findings: rule id, severity, resource, message, suggested fix. The findings are stored like any other artifact, at compliance/check-<token>.json with a compliance_checks row holding the verdict, so the session detail and the portal can show them.

Verdict in code

The tool handler recomputes passed from the severities: any error or critical finding fails the audit regardless of the model’s own claim.

Lock or release, then pin

The handler first writes is_blocked, which decides whether apply and pull-request merge are available, and notifies on failure; only then does the validated workspace with session.plan become the session’s pinned plan, replacing any earlier pin. A failed lock write therefore leaves the round unpinned. Configuration, exact formula and effect: Compliance gate.

Phase 9: pull request and review

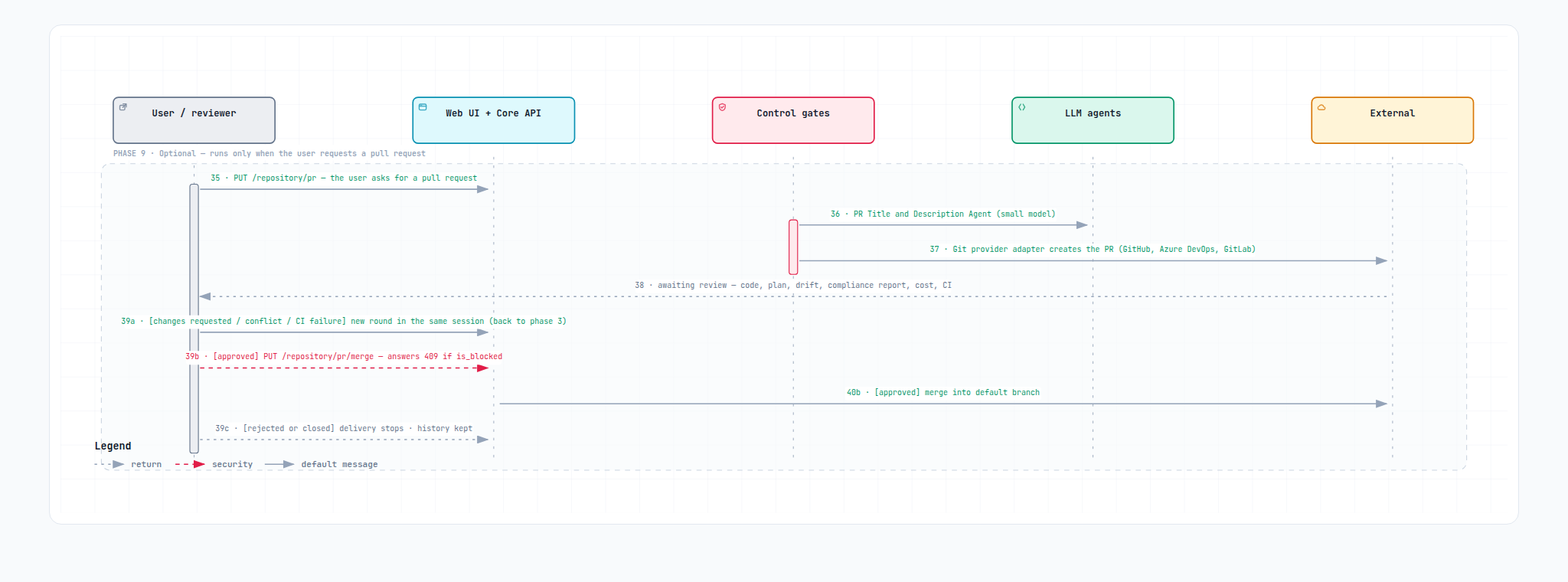

Kumoss request flow, phase 9: optional pull request and human review

Pan, zoom, search, follow a message, switch themes. Open in a new tab

Messages 35 to 40.

Step What happens

Pull request on demand

PUT /api/v1/repository/pr (owner, developer) has the PR Title and Description Agent (small model) draft the text, then the Git provider adapter (GitHub, Azure DevOps or GitLab REST API) opens the pull request from the session branch. Reviewers see the code diff, a title and description the model derives only from the request and the conversation history, and their own CI; the plan, report and cost estimate stay in Kumoss’s results view, and compliance findings reach only the notification audience.

Review outcomes

Requested changes become a new request in the same session — back to phase 3, a new round on the same branch — which is possible while the session is COMPLETED or UNCOMPLETED, never after a FAILED round. Approval leads to PUT /api/v1/repository/pr/merge, which merges into the default branch unless the session is locked (409): a merge is always lock-checked. A rejected or closed pull request ends delivery; the session history and artifacts are kept.

Phase 10: apply

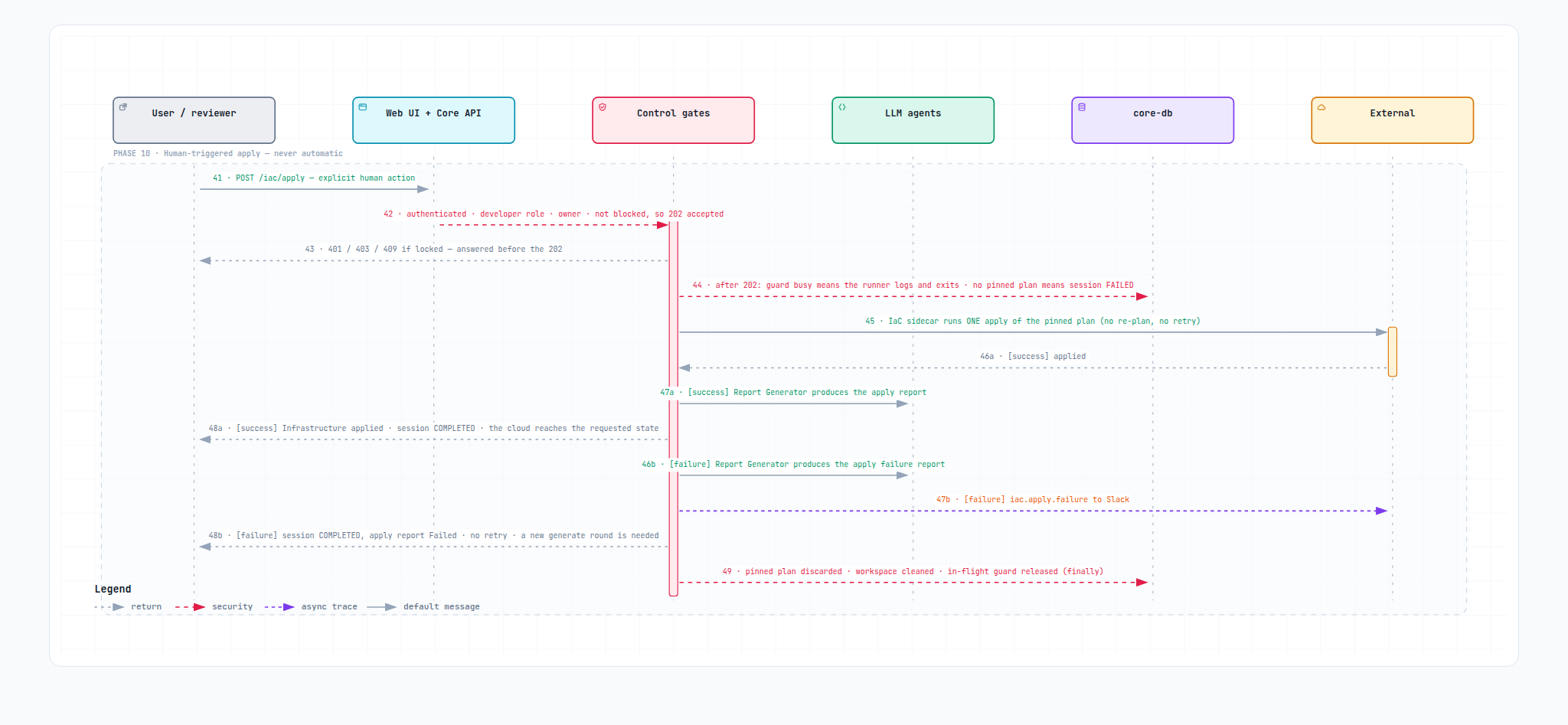

Kumoss request flow, phase 10: human-triggered apply, never automatic

Pan, zoom, search, follow a message, switch themes. Open in a new tab

Messages 41 to 49.

Step What happens

Explicit human action

POST /api/v1/iac/apply with the session id. Nothing in the pipeline applies on its own; in the UI this is the "Approve PR and Apply" button after a merge.

Gates

A valid identity, the developer role, session ownership and an unlocked session (409 Session …​ is blocked — the only 409 a client sees), then 202. In the background the runner needs a free in-flight guard, and the handler needs a pinned plan; a drift-only session has none, because drift rounds never pin.

One apply

The iac sidecar runs a single apply session.plan on the pinned workspace: no re-plan, no retry. Exactly the reviewed plan executes.

Outcome

The Report Generator reads the engine output either way and writes an apply report whose status is the model’s classification of that output — Success, Partial or Failed. A non-zero exit does not raise: the deterministic signal is the iac.apply.failure notification, gated on the exit code, and the session still ends COMPLETED — see How a session ends.

Cleanup (always)

The pinned plan is discarded, the run directory is removed from the volume, and the in-flight guard is released in a finally block.

Diagram legend

Each diagram is an Archify sequence diagram: participants across the top, time running downwards, one arrow per message.

Participants — the boxes at the top; each diagram shows only the ones its phases use.

Participant Meaning

User / reviewer (grey)

Human actor. Only a human starts a request, creates or merges a pull request, or applies.

Web UI + Core API (blue)

The React application and the FastAPI routers: authentication dependency, 202 answers, SSE stream, presigned URLs.

Control gates (red)

Application code with no model judgment: session and lock handling, the in-flight guard, git operations, drift calculation, the compliance verdict, artifact storage. Every state change and every blocking decision happens here.

LLM agents (green)

Prompt-driven agent loops. Each message into this participant names the agent and its model role (main = llm.model, small = llm.small_model); see the agent catalogue.

core-db (purple)

The PostgreSQL rows the gates read and write: the session, its status, the in-flight guard, is_blocked, artifact metadata. Its own participant, so every state change is a visible message rather than an invisible side effect.

External (amber)

Git hosting, the IaC engine in the iac sidecar, object storage, Slack through the notifications sidecar, and the cloud platform.

Arrows and bands

Element Meaning

Solid grey arrow (default message)

A call or hand-over in the direction of the arrow.

Dashed grey arrow (return)

A result flowing back: engine output, structured findings, an HTTP status, a message shown to the user.

Dashed crimson arrow (security)

A gate or a state change with authority over the flow: identity and role checks, refusals, the compliance verdict, the lock flag, the in-flight guard, cleanup.

Dashed purple arrow (async trace)

A fire-and-forget notification to the notifications sidecar. It never fails the pipeline.

Vertical bar on a lifeline

An activation: that participant is busy for the span the bar covers.

Dashed band labeled PHASE n · …

One phase, numbered as the sections above. The label also carries facts that have no arrow of their own, such as the conditions under which a bounded loop stops.

Message numbers

1 to 49, continuous across the five diagrams. They do not map one-to-one onto the steps in the tables above, which group several messages per step.

A number with an a / b / c suffix

Mutually exclusive arms of one decision — 32a and 32b are the two outcomes of the compliance verdict, and only one happens. Each arm’s messages also start with its condition in brackets: [fail], [pass], [approved]. A sequence diagram draws one column, so the arms appear one after another; the shared number and the bracket are what mark them as alternatives rather than consecutive steps. Arms can differ in length, so 13a with no 13b means only the first arm still has a message at that point.

[at most n …] in a label or band

A bounded loop with its ceiling, at the shipped values: 40 model turns per agent loop, 5 validation iterations, 2 drift pre-check rounds, 8 operations per drift batch.

Agent catalogue

Every message into the agents lane is one of the agents below. Each is an orchestration loop rendered from a Jinja layout with prompts fetched from Phoenix, given a fixed tool set, and ended by a sentinel tool whose structured arguments are the agent’s result.

Agent Model Tools available Ends via Where it appears

Infrastructure Generation Agent

main

write_to_file, replace_in_file, delete_file, read_file, list_dir, bulk_grep_search, diff_history, web_search

task_complete

Phase 5; re-entered by drift batches in Phase 6 and by dedicated drift sessions

Session Target Generator

main

read_file, list_dir, bulk_grep_search, diff_history (read-only)

generate_terraform_targets

Phase 5, before every plan -target

Drift Target Generator

main

the same read-only set, rendered with the general-guidelines-targeting_policies prompt

generate_terraform_targets

Dedicated partial drift sessions only, never in the generate flow

Report Generator

main

Plan and apply reports: web_search. Drift report: read_file, list_dir, bulk_grep_search, diff_history (it must call diff_history) and no web search

generate_terraform_plan_report, generate_terraform_drift_report or generate_terraform_apply_report

Phase 7, Phase 10, and dedicated drift sessions

Request Filter Agent

small

read_file, list_dir, bulk_grep_search, diff_history

requests_filter

Phase 3; also the first step of partial drift sessions

Prompt Compositor

small

none besides its sentinel

construct_information (two passes)

Phase 4

Status Message Agent

small

none

plain text

Every status change; its text is what the SSE stream carries

Drift Task Splitter

main

read_file, list_dir, bulk_grep_search, diff_history, web_search

report_decomposed_task_operations

Phase 6 and dedicated drift sessions

Reconciliation Filter Agent

small

read_file, list_dir, bulk_grep_search, diff_history (it must call diff_history)

report_decomposed_task_operations

Phase 6 only, generate rounds

Drift Exception Filter Agent

small

None besides its sentinel; rendered with the cloud’s drift_exceptions prompt

report_decomposed_task_operations

Phase 6 and dedicated drift sessions, after the reconciliation filter

Compliance Auditor Agent

small

none besides its sentinel; input is the first request and the raw plan output

report_compliance_findings

Phase 8, generate rounds, when the checker is enabled

PR Title & Description Agent

small

none

generate_pull_request

Phase 9

Agents never delegate to one another and there is no supervisor agent: the handler classes call each in a fixed order, and every loop has a configured ceiling (orchestration.max_tool_agent_executions, max_validation_iteration, max_drift_reports, drift_group_operations; the drift pre-check inside a generate round is fixed at two iterations).

Deterministic, non-LLM components fill the other lanes: the FastAPI routers and use-case handlers; PostgreSQL session, ownership, status, in_flight and is_blocked controls; the git workspace service and the GitHub, Azure DevOps and GitLab adapters; the iac sidecar; drift calculation (plan_to_drift, DeepDiff); the code-computed compliance verdict; object storage with presigned URLs; SSE status delivery; the notifications sidecar.

Agent tool loop

Every agent with tools runs the same loop: the model is offered the agent’s tools, the core runs the calls it returns, feeds the results back, and repeats until the sentinel tool is called. Each inference is one turn of the orchestration.max_tool_agent_executions budget (40 shipped), whether or not it called a tool. The core guards the loop so the budget is spent on work rather than on repeats:

Guard Behaviour

Last turn

The final turn of the budget offers only the sentinel tool, with a note telling the model to return the best result the work so far allows and state what is left unfinished. Only a model that still does not call it reaches ToolExecutionsExceeded, which fails the round.

Duplicate calls

A call whose tool and arguments match one already run in the loop is not run again (the free-text explanation argument is ignored for the comparison). The model gets a failed result telling it the answer is already in the conversation.

Single-use tools

diff_history returns the same result whatever its arguments, so it is withdrawn from the offered tools once it succeeds.

Workspace changes

A successful write_to_file, replace_in_file or delete_file clears both memories: reads made before it may now return something different, so they may be repeated and diff_history is offered again.

Replies without tool calls

Tool choice is auto, so a model may answer in plain text. The text is kept in the history and the model is told that only tool calls are read: continue with the tools, or call the sentinel if it is done or blocked. An empty reply gets the same reminder for the next turn only. Both count as a turn.

Tool errors

A failing tool call does not fail the round: its error goes back to the model as a failed result. Every result reaches the model as JSON, {"success": true, "result": …​} or {"success": false, "error": …​}.

Workspace confinement. The agents' working directory is the session’s IaC root: the clone plus iac_path, with symlinks resolved. The root must be an existing directory inside the clone, or the run fails with runner failed: iac_path '<path>' is not a directory inside the repository before any agent starts, so a committed link cannot widen the tools' reach. Within it:

  • Tool paths are relative to the IaC root. An absolute path is accepted only when it points inside the root; anything that resolves outside it, through .. or a symlink, is rejected.

  • The entries Kumoss manages are invisible to the tools at any depth: .git, .gitignore, and the state backend override (paths.backend_override_filename, which holds the state store credentials). list_dir and bulk_grep_search never show them, and reading, writing or deleting them is rejected.

  • list_dir (non-recursive) and bulk_grep_search apply the same ignore rules (.gitignore, .ignore) and include hidden files, so both agree on what the workspace contains. Each search returns at most 50 path:line:content matches, with truncated set when there are more.

  • write_to_file, replace_in_file and delete_file only touch .tf and .tfvars files.

  • read_file on a file that does not exist tells the model to stop guessing filenames and rely on the directory listing.

How a session ends

A round leaves the session in one of three statuses, or writes none at all. Only FAILED is terminal, and it is terminal for the session, not only for the round: the in-flight guard refuses to start a run on a session whose latest status is FAILED. A follow-up request, apply or drift round sent to it is still answered 202, and its runner then logs runner not started: Session …​ is finished and cannot be resumed and exits, so only a new session carries the work forward. COMPLETED and UNCOMPLETED are resting states that accept a new round whenever the owner sends one. The progress stream closes on any of the three.

FAILED: the session is closed

Outcome Reached when Status message and side effects

Validation never converged — phase 5

All orchestration.max_validation_iteration attempts are used: 5 in the shipped config.yaml, 8 built in

runner failed: Validation loop exceeded. and a system.exception.failure notification. No LLM problem summary is produced. The branch keeps the last pushed attempt.

Apply without a pinned plan — phase 10

The session’s last round was drift-only, or an earlier apply already consumed the pin. Every apply discards the pin, whether it succeeded or not, so a second apply on the same session always ends here

202 answered, then an internal 409: No reviewed plan is pinned for this session; run a generate or drift round before applying. The wording misleads, since drift rounds never pin. The runner sets FAILED and sends system.exception.failure.

Pipeline failed — any phase

Any error the core raises as one of its own typed exceptions: a model or tool error, a drift remediation batch that exhausts its own validation attempts, a sidecar timeout, a git or storage failure, a prompt Phoenix cannot return

runner failed: <reason> and system.exception.failure; run directory removed; in-flight guard released.

COMPLETED: the round finished, the session stays open

Outcome Reached when Side effects

Validated, unlocked — phase 8

The audit passed or the checker is off, and the report’s impact banner is not high or orchestration.block_on_high_impact is off

is_blocked = false, plan pinned. Apply and pull-request merge are available.

Validated, locked — phase 8

Any error or critical compliance finding, or a high impact banner with orchestration.block_on_high_impact on

is_blocked = true, plan pinned; iac.compliance.failed or iac.impact.high notification. Apply and merge answer 409 until a later passing, non-high round clears the lock or a panel editor toggles it.

Applied — phase 10

The engine’s apply exited with code zero

apply report written; pinned plan discarded.

Apply failed — phase 10

The engine’s apply exited with a non-zero code

Not an exception: the handler writes an apply report whose status is the model’s classification of the engine output (normally Failed), sends iac.apply.failure — the deterministic, exit-code-gated signal — and returns. Pinned plan discarded; no retry.

A failed apply and a successful one leave the same COMPLETED status. The apply report and the iac.apply.failure notification are the only places the difference shows, and the next step after a failure is a new generate round, never a second apply.

UNCOMPLETED: the request needs reformulating

The Request Filter Agent declined the request in phase 3 as out of scope, prohibited or ambiguous, or answered it as a question. The rationale is added to the conversation, and the owner’s next request opens a new round of the same session.

No status written

These outcomes leave the latest status as it was.

Outcome Reached when Effect

Pull request open — phase 9

The owner created a pull request

Pull request recorded. Pull-request creation is not lock-checked; the merge is.

Changes requested — phase 9

A reviewer asked for changes, or the pull request’s own CI or a merge conflict failed it. Kumoss does not watch the pull request: the owner relays the problem as a new request

A new round of the same session starts at phase 3, on the same branch.

Pull request rejected or closed — phase 9

The reviewer closed the pull request

History and artifacts kept; the session still accepts new rounds.

Concurrent run dropped — phase 2

A generate, drift or apply request reached a session with a run already in flight

202 answered, then the runner logs runner not started: Session …​ already has an operation in flight and returns without touching the session.

Run ended without a status — any phase

An error outside the core’s own exception types, such as an unexpected library or runtime error. The runner converts only its own typed exceptions into FAILED

Run directory removed and guard released, but no status and no notification are written. The latest status stays at an in-progress value such as generating, and the progress stream keeps reporting it until its orchestration.max_session_events_iteration cap, about three hours. The session is not terminal and accepts a new round.

How the architecture works

The mechanisms behind the flow above, one concern per subsection.

Browser delivery and ingress

The nginx image compiles the SPA in a Node builder stage and serves the bundle itself; there is no separate frontend container. The SPA uses relative paths, so nginx is the only address the browser knows: /api proxies to core:8000, a dedicated events location disables proxy buffering so progress streams immediately, and /monitoring/ exposes the Phoenix UI. nginx authenticates nothing — bearer tokens pass through to the core.

Authentication

Before rendering, the SPA fetches the only unauthenticated route, GET /api/v1/auth/config, which returns the OIDC issuer_url, client_id, optional audience and resolved scope from config.yaml.

Mode Behaviour

Disabled — blank oidc.issuer_url, the checked-in default

The SPA mounts a dev provider, and the core resolves every request to a fixed local-developer identity (urn:kumoss:dev / dev), provisioned as a real user row with the top role of both groups.

Enabled

Authorization Code flow with PKCE as a public client — no client secret exists anywhere. Login redirects to the identity provider and returns to /auth/callback; tokens are kept in sessionStorage; renewal is silent; logout is RP-initiated, falling back to a local sign-out when the provider has no end_session_endpoint. Every API call and the progress stream attach Authorization: Bearer <access_token>, and any 401 flips the UI to a "session expired" login screen.

On the core, a bearer-token dependency guards every protected route. It validates the token against the issuer’s JWKS — fetched lazily on first use and cached, so boot never depends on the identity provider — checks iss (with or without trailing slash), aud (oidc.audience, or client_id and api://<client_id> when blank) and exp/nbf within clock_skew_seconds, requires exp, iss and sub, and accepts only asymmetric algorithms. Claims then resolve to a user keyed by issuer and subject: the first request provisions the row, later ones sync e-mail and display name, and a token whose email matches admin.default_root_email with email_verified: true is elevated one-way to devops + admin from that user’s next request on.

Authorization and ownership

Two independent role groups live on the user row:

Group Values Gates

Operation role

developer < devops

generate, apply, repository parse and pull-request routes need developer; drift needs devops. The SPA mirrors this in the mode drop-down, offering drift, partial drift and import only to devops users even though the backend accepts apply from a developer.

Panel role

viewer < editor < admin, nullable

viewer lists cross-user sessions, editor toggles a session lock, admin lists users and assigns roles. An admin cannot drop their own admin panel role (409).

Every session has an owner. The sessions list is always scoped to the caller; writes — iterations, apply, pull requests — are owner-only, and reads, including the progress stream, are open to the owner or to anyone holding a panel role.

Separately from roles, the wizard’s preflight POST /api/v1/auth/authorize asks the authz sidecar whether the caller may touch a given cloud project and environment. Disabled — the default — the core answers "authorized" with no network call; enabled, a timeout or unreachable sidecar is returned as 504/502, never as an allow. This is a hook for enterprise cloud-access policy, not the access control for Kumoss’s own data.

Session creation and orchestration

A POST to /api/v1/iac/generate, /iac/drift or /iac/apply creates or resolves a session owned by the caller and returns 202 Accepted. The git ls-remote reachability check runs only on requests carrying a repository URI — the first call of a generate or drift session. Iteration calls send only a session id and the new text, and an apply request has no repository field at all, so both skip it.

The pipeline then runs in-process as a background task; there is no external job queue. Each run gets a freshly assembled object graph: the two model providers, the workspace tool registry, Phoenix-backed template services, and the validation, filter, report, drift, task-splitting and pull-request services.

Model routing

The generate flow advances through the statuses the progress stream reports — filtering, generating, validating, reconciling, report — as described in phases 3 to 8. Routing is by prompt type, not by provider:

Model role Used by

llm.model (main)

Infrastructure generation, target calculation, report writing, drift task splitting

llm.small_model (small)

Request filtering, prompt composition, status messages, pull-request text, the reconciliation filter, the drift exception filter, the compliance audit

IaC and mapping sidecars

The iac sidecar is a deliberately thin executor: a reference for non-production installs, meant to be re-implemented against the organization’s own execution platform in production. Each POST enqueues exactly one engine command (OpenTofu by default) as an asynchronous job and returns a job id; the core polls it — 5-second interval, 1-hour budget per job — and does all the sequencing itself.

Behaviour Detail

Three verbs over the plan artifact

plan runs init → validate → plan -out and returns a reference naming what it wrote; drift runs show -json on such a reference; apply runs the artifact already in the workspace.

init is cached

Once per round, and re-run only when the engine’s own output asks for it, which keeps retry loops from re-initializing the same workspace. Both containers read the same workspaces volume.

init always runs -reconfigure

The engine runs with -input=false and could not answer a "Backend configuration changed" prompt. The consequence: a changed backend is adopted, never migrated.

The sidecar owns no backend decision

Beyond the optional IAC_BACKEND_CONFIG file, the backend is whatever the workspace contains: the backend_override.tf the core writes by default, since Kumoss-managed state is on as shipped, or the repository’s own block if that is turned off.

The mapping sidecar translates a business identifier into a repository reference; the reference implementation is an identity passthrough. It may also answer with the terraform provider and cloud scope that identifier deploys to, and those answers are best effort: null means "unknown, ask the user", never "there is none". The wizard skips the step for every field the mapper fills, so a guess is a question the user never gets to correct — an implementation that does not know must say null.

Drift detection and remediation

All drift work runs through one bounded loop:

  1. Read the drift out of a plan. Detection is show -json over a plan artifact, so the loop takes the plan to start from as a parameter: the workspace, the plan file, the targets it was produced with, and a fingerprint of the working tree — the SHA-256 of git status --porcelain=v2 --branch --untracked-files=all — sampled immediately after the plan job returned. A generate round passes the plan it has just validated, so its pre-check costs one show; a dedicated drift session passes nothing and the loop plans first.

  2. Invert it. Each resource’s before and after are diffed and the result inverted into "make the code match the infrastructure" operations. The drift JSON is stored as an artifact; the plan text is stored by the validation loop that produced it, one artifact per attempt.

  3. Split, filter, and remediate. A clean plan stops the loop. Otherwise the Drift Task Splitter (main model) turns the JSON into plain-language operations, the Drift Exception Filter drops every operation the cloud’s <cloud>-guidelines-drift_exceptions rules cover (logging each one), and the survivors, chunked into groups of drift_group_operations (8), each re-enter the generation and validation loop with the forbidden-actions block omitted, the intent being reconciliation. When every operation is excluded the loop stops there: re-planning would only rediscover the same drift.

The fingerprint is what makes reading an existing plan safe: any plan the working tree has moved past is re-planned, and one naming a different workspace is refused. It covers uncommitted and untracked files, so it moves for generated code while ignoring the engine’s own output. Every reconciliation group re-plans and the last of those is what the next iteration reads; an iteration whose split yielded no operations has no plan to hand on, so the next one plans for itself. Every iteration that could have changed therefore reads live state.

Each iteration opens with a reconciling status written before step 1, so the phase is visible on the timeline whether or not drift was found.

The loop has two entry points, differing in what they target and whether session intent is filtered out:

Entry point Targets Behaviour

Pre-check inside every generate round

The session’s own validated targets

At most two iterations, filtered. The Reconciliation Filter agent must call diff_history — the branch’s committed diff against the default branch plus untracked files — then drops any operation that would merely revert a session change, trims mixed operations to their genuine-drift part, and keeps the rest. An empty survivor list ends the loop without invoking the generator. The GENERATE report is written from the pre-check’s final plan, and the first detection reuses the validation loop’s plan rather than planning again.

Dedicated drift session — POST /api/v1/iac/drift

Full drift takes the whole root module, an empty target list. Partial drift takes the targets the Drift Target Generator chooses after the request filter.

Up to max_drift_reports (3) iterations, unfiltered — a drift session has no intended changes of its own. It writes a DRIFT report from the branch diff (see below) and plans for itself on the first iteration. The drift handler never touches the session lock, does not run the compliance audit and does not pin the workspace — drift never pins — so an apply after a drift-only round fails until a generate round pins a plan.

How the DRIFT report is written. The drift report is the one report the generator does not receive as a text to summarise: it reads the branch for itself. The report service gives the drift report the workspace-inspection tool set instead of web_search, and the drift branch of the report layout makes diff_history a required first call and the sole source of truth for the remediation. That works because every reconciliation group commits and pushes inside the validation loop before the report runs, so the branch’s committed diff against the default branch, plus untracked files, is the reconciliation; no remediated resource may be named that the diff does not show. The drift handler therefore no longer serialises the session history into the report query and passes only what the remediation left out, in two labelled blocks that map one-to-one onto optional report fields:

Block in the report query Report field When it appears Effect on status

"Unreconciled drift"

unreconciled_drift

The loop ended out of sync: genuine drift the iteration ceiling left behind, or a drift read that failed outright

Partial, or Failed when nothing was remediated at all

"Whitelisted exceptions"

whitelisted_exceptions

The Drift Exception Filter excluded operations; one entry per excluded change, with the rule that covers it

None. Leaving them alone is the intended outcome, so the round can still report Succeeded

Both blocks stay out of the schema’s top-level required, and resource_address is optional inside them — a failed drift read names no resource, and a rule may cover a type or a naming pattern rather than an address — so a thin answer cannot fail validation and cost an otherwise good report. One consequence of reading the branch rather than a per-round record: the diff is branch-wide, so in a multi-round drift session every report describes every change on the branch, including the ones earlier rounds made.

The pre-check replaced an earlier design in which a predictive target agent guessed the affected resources and remediated drift before any code was generated. That agent and its PREDICTIVE mode were removed, and the shared Phoenix guideline was renamed from predictive_targets to targeting_policies.

Compliance gate

Aspect Detail

Where it runs

Only in the generate handler, after the report is written, behind orchestration.enable_compliance_checker (true in the checked-in config.yaml; the built-in default is false). The drift handler no longer runs it, and the apply handler never calls it. Disabled, the check short-circuits to an empty passing report and stores nothing. The gate has no progress status of its own.

How it audits

A second, independent small-model agent loop. Its query is the session’s first user request plus the raw plan output, rendered into the local compliance-checker layout with the general-compliance-report rules and the cloud guidelines from Phoenix. It has no repository access and one tool, the sentinel report_compliance_findings, whose arguments — rule_id, severity, resource, message and suggested_fix per violation — are parsed into a typed report. The rules are applied by the model; only the verdict is computed in code.

Persistence

The report is stored in object storage under the round, as compliance/check-<token>.json, with a compliance_checks row holding the passed verdict. The session detail returns it in the round’s compliance_checks, and the portal renders it in the session view and, when the session is locked, in the blocked pull-request view.

Verdict in code

The tool handler recomputes passed from the reported severities: any error or critical violation fails the check regardless of the model’s own claim.

Effect

Every generate round writes is_blocked = (audit failed) or (high impact), high impact meaning orchestration.block_on_high_impact is on and the report’s banner is high. Failure sends iac.compliance.failed, or iac.impact.high, to the notifications sidecar. Apply and pull-request merge refuse blocked sessions with 409; pull-request creation is not lock-checked, and the audited code is already on the working branch, so the lock guards the apply boundary specifically. A later passing generate round with a non-high impact clears the lock, drift rounds leave it untouched, and a panel editor can toggle it from the admin panel.

Progress and persistence

Status rows are appended to PostgreSQL with a Redis write-through; there is no message broker. The stream endpoint polls the last status every 4-5 seconds — usually from Redis — and sends small JSON events until a terminal status. The SPA reads it with fetch and a streaming response rather than EventSource, which cannot carry an Authorization header, and retries three times with exponential backoff. A 401 is not retried and surfaces as a session-expired event. Token and ownership are checked once, at connect time.

Artifacts and telemetry

  • Reports, plans, drift JSON and per-file code changes go to the kumoss-artifacts bucket, metadata to PostgreSQL. The browser fetches them through presigned URLs signed against the public port-9000 endpoint nginx forwards to RustFS.

  • Every run installs a per-session tracer exporting OpenInference-annotated spans — LLM, tool, chain, Terraform — to Phoenix over OTLP/HTTP.

  • Prompt templates live in Phoenix as a runtime registry, seeded at boot and fetched per request by environment tag, so prompt edits apply without a redeploy.

  • Notifications are fire-and-forget: the facade no-ops when the sidecar is disabled and logs every send failure instead of failing the pipeline.
