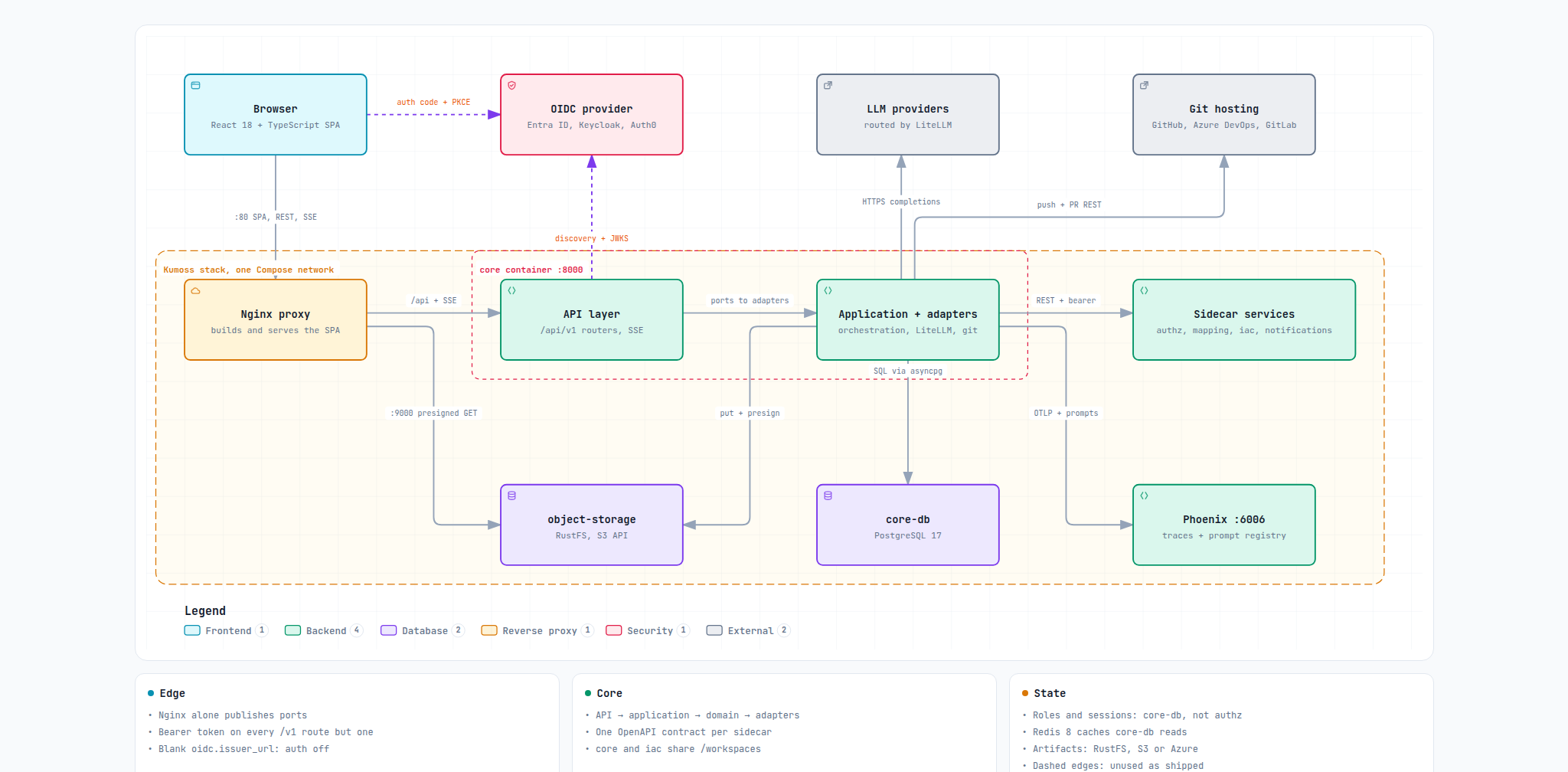

Architecture

React SPA (client/web)

Session wizard, planning and results views, user page and admin panel. An OIDC public client: it calls /api with a bearer token and streams progress over Server-Sent Events.

Built into the Nginx image; reaches the API through Nginx, and the identity provider directly for login

Nginx (proxy)

Sole public entry point, on ports 80 and 9000: serves the built SPA and proxies /api, the events stream, /monitoring/ and object storage.

Browser → core, Phoenix, object storage

Core API layer (core/src/api/v1)

Routes every request: IaC operations, the progress stream, session reads, repository and pull-request actions, identity and roles, the admin panel, and passthroughs to the mapping and notifications sidecars. One authentication dependency guards all of them but the public OIDC configuration.

Delegates to application handlers

Application layer (core/src/application)

The generate, drift and apply handlers, and the services they orchestrate — filtering, reporting, pull requests, session orchestration. A factory builds a fresh object graph per run.

Composes domain services

Domain layer (core/src/domains)

Entities, value objects and ports, and the services holding the behaviour: the agent loop, session and user management, validation, targeting, the compliance audit, artifact storage, persistence and tracing.

Depends only on interfaces

Infrastructure layer (core/src/infrastructure)

Adapters behind those ports: OIDC, the LiteLLM router, git and workspaces, the iac-sidecar driver, Jinja layouts, object storage, PostgreSQL, Redis and OpenTelemetry. The generated sidecar clients are not part of this layer — they live in core/src/clients, a sibling package.

Implements domain ports

authz service

Cloud project access checks, disabled by default. Disabled, the core answers "authorized" without calling it; enabled, an unreachable sidecar is an error, never an allow. Its user and role endpoints are unused — Kumoss keeps those in core-db.

Called from the authorize route with the caller’s identity; container-local JSON role store

iac service

Runs one IaC engine command per asynchronous job — init, validate, plan, show, apply — returning a job id to poll. OpenTofu by default, selected with IAC_BINARY. A reference implementation; production deployments are expected to supply their own.

Shares the workspaces volume with the core

mapping service

Resolves a business identifier to a repository URL, plus a best-effort terraform provider and cloud scope (null means unknown, ask the user); the reference implementation is an identity passthrough.

Called through a core passthrough route

notifications service

Channel-agnostic notify contract; the reference implementation posts colour-coded Slack webhook messages.

Fire-and-forget from the core on compliance, apply and pipeline failures; request/response for the support requests the header’s chat bubble sends

OpenAPI contracts (contracts/openapi)

Source of truth for the four sidecar APIs, with Schemathesis conformance suites.

Contracts → generated clients → sidecars

core-db (PostgreSQL 17)

System of record: thirteen tables covering users, sessions, workspaces, rounds, plans, pull requests, reports, compliance checks and artifacts.

Core, over asyncpg

Redis 8

Fail-open cache for session facts, the last status and finished-session aggregates. No pub/sub, no locks.

Core only

object-storage (RustFS, Apache-2.0)

Default, bundled artifact store (kumoss-artifacts): reports, plans, drift JSON and code changes, served to the browser by presigned URL. storage.provider switches to AWS S3, Azure Blob Storage or any other S3-compatible endpoint. Engine state lives in the separate storage.terraform_state_bucket — on by default as shipped.

Core through the SDK, browser through Nginx :9000, and the iac sidecar for state

workspaces volume

Per-run git clones under /workspaces/<session>/<call>. A failed run’s directory is removed; a successful generate round renames its directory to /workspaces/<session>/pinned, which survives until apply discards it or the next generate round replaces it.

Mounted by core and iac

Phoenix + phoenix-db

OpenTelemetry trace collector and UI, and the prompt registry seeded at core boot.

Core, over OTLP/HTTP and the Prompts API

OIDC identity provider

Authenticates users and issues the JWT access tokens the core validates. Any provider with discovery, JWKS and JWT access tokens works; Entra ID, Keycloak, Auth0 and Okta are documented.

Browser for login, core for discovery and JWKS; configured under oidc

LLM providers

Model inference behind the LiteLLM router, in a main and a small role.

Selected by llm.model and llm.small_model; credentials in the core’s environment file

Git hosting

Clone and push over the git CLI; pull requests through the GitHub, Azure DevOps or GitLab REST APIs. Public SaaS hosts only — github.com, gitlab.com without subgroups, dev.azure.com — over HTTPS. GitHub Enterprise Server and self-managed GitLab are not supported today.

Selected by git.provider
