Archetype

The Karate Tools Archetype generates a karate project from scratch with the necessary configurations and utilities for the generation and execution of karate tests.

1. Note down the target artifact’s group ID, version and main package.

In the artifact’s main pom.xml file, you will find the artifact’s group ID and version for which the Karate tests are to be created.

  <groupId>com.mypackage</groupId>
  <version>X.X.X</version>

In the artifact’s code, you will find the artifact’s main package.

package com.mypackage;

2. Create a Karate project using the Karate Tools Archetype

Go to the folder where you want to create the karate project, for example e2e and run the following command:

mvn archetype:generate -DarchetypeGroupId=dev.inditex.karate -DarchetypeArtifactId=karatetools-archetype -DinteractiveMode=true -DaskForDefaultPropertyValues=true -DarchetypeVersion=5.0.1

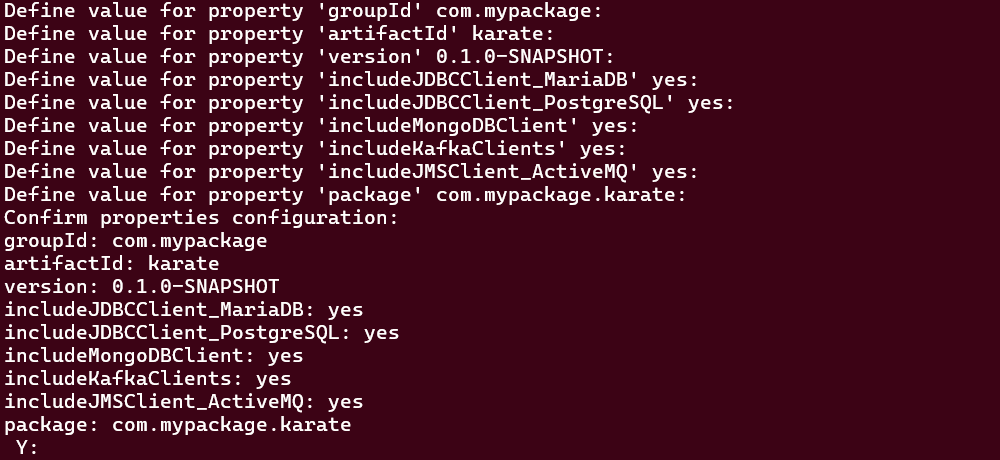

It will prompt for the standard archetype properties:

Define value for property 'groupId' com.mypackage: :
Define value for property 'artifactId' karate: :
Define value for property 'version' 0.1.0-SNAPSHOT: :
Define value for property 'package' com.mypackage.karate: :

For the generated karate project we recommend to use:

Same group ID as the target artifact.
artifact ID: karate
Same version as the target artifact.
package with the same value as the target artifact with suffix .karate, for example: com.mypackage.karate

It will prompt (yes/no) for the properties to include sample configuration files for the Karate Clients (JDBC, MongoDB, Kafka and JMS):

JDBC
- includeJDBCClient_MariaDB to include MariaDB JDBC client configuration
- includeJDBCClient_PostgreSQL to include PostgreSQL JDBC client configuration
MongoDB
- includeMongoDBClient to include MongoDB configuration
JMS
- includeJMSClient_ActiveMQ to include ActiveMQ configuration
Kafka
- includeKafkaClients to include Kafka configuration(s).

Define value for property 'includeJDBCClient_MariaDB' yes: :
Define value for property 'includeJDBCClient_PostgreSQL' yes: :
Define value for property 'includeMongoDBClient' yes: :
Define value for property 'includeKafkaClients' yes: :
Define value for property 'includeJMSClient_ActiveMQ' yes: :

For a client not to be included type n or no, if it’s left empty it takes the default value.

This will automatically create the karate artifact folder structure, the test runner, the configuration and support files.

  <groupId>com.mypackage</groupId>
  <artifactId>karate</artifactId>
  <version>X.X.X</version>

package com.mypackage.karate;

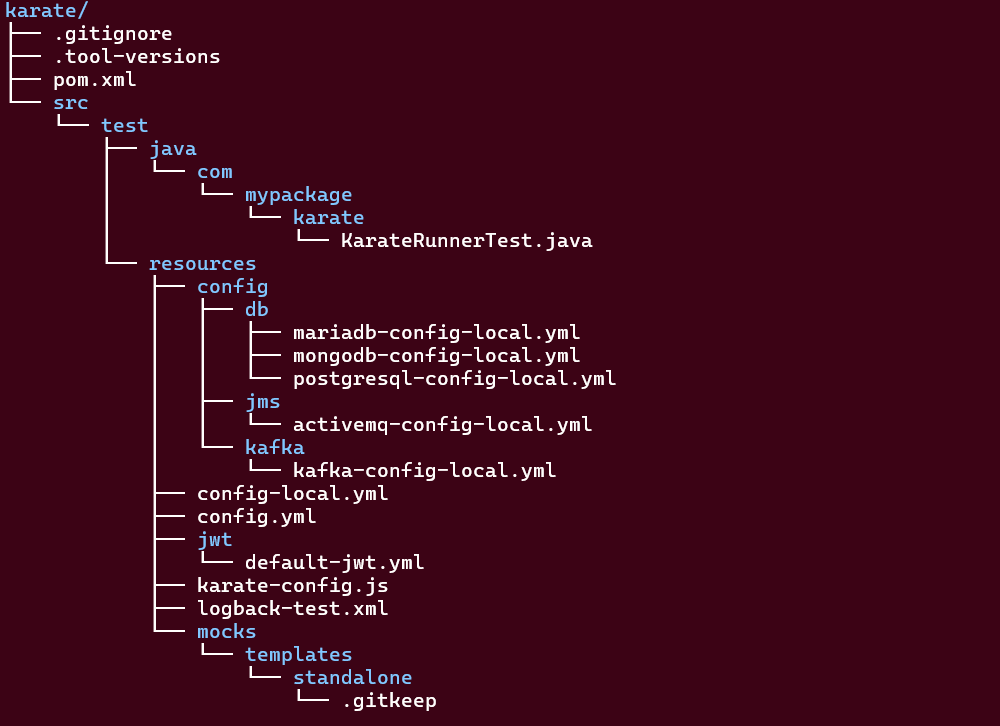

3. Review Karate project structure

Tools version manager file:
- .tool-versions
Git Ignore file:
- .gitingore
Karate pom file:
- pom.xml
Java Test Runner:
- src/test/java/com/mypackage/karate/KarateRunnerTest.java
Configuration Files (general and environment specific):
- src/test/resources/config.yml
- src/test/resources/config-<env>.yml
Karate-config files:
- src/test/resources/karate-config.js
Karate Authentication Default JWT:
- src/test/resources/jwt/default-jwt.yml
logback configuration:
- src/test/resources/logback-test.xml
karate clients configuration files as per archetype properties (includeJDBCClient_MariaDB, …)
- src/test/resources/config/db
- src/test/resources/config/jms
- src/test/resources/config/kafka
karate mocks folder to define standalone mock templates
- src/test/resources/mocks/templates/standalone

4. Configure the artifact to include the karate module in the release versioning process

These steps are to be performed at the target artifact main pom level, not at karate level.

Main artifact pom.xml

<modules>
  ...
  <!-- Module to create the karate release only -->
  <module>karate-release</module>
</modules>

karate-release/pom.xml

The workingDirectory defined in the plugins pom, must point to the relative path to the karate module, for example: <workingDirectory>../../e2e/karate</workingDirectory>

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>TO_BE_COMPLETED</groupId>
    <artifactId>TO_BE_COMPLETED</artifactId>
    <version>TO_BE_COMPLETED</version>
    <relativePath>..</relativePath>
  </parent>

  <artifactId>karate-release</artifactId>
  <packaging>pom</packaging>

  <name>${project.groupId}:${project.artifactId}</name>
  <description />

  <properties>
    <exec-maven-plugin.version>3.1.0</exec-maven-plugin.version>
    <maven-scm-plugin.version>2.1.0</maven-scm-plugin.version>
  </properties>

  <build>
    <plugins>
      <plugin>
        <groupId>org.codehaus.mojo</groupId>
        <artifactId>exec-maven-plugin</artifactId>
        <version>${exec-maven-plugin.version}</version>
        <executions>
          <execution>
            <id>sync-karate-version</id>
            <goals>
              <goal>exec</goal>
            </goals>
            <configuration>
              <executable>mvn</executable>
              <workingDirectory>../../e2e/karate</workingDirectory>
              <arguments>
                <argument>versions:set</argument>
                <argument>-DnewVersion=${project.version}</argument>
              </arguments>
            </configuration>
          </execution>
        </executions>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-scm-plugin</artifactId>
        <version>${maven-scm-plugin.version}</version>
        <executions>
          <execution>
            <id>sync-karate-version</id>
            <phase>default-cli</phase>
            <goals>
              <goal>add</goal>
            </goals>
            <configuration>
              <workingDirectory>../../e2e/karate</workingDirectory>
              <includes>pom.xml</includes>
            </configuration>
          </execution>
        </executions>
      </plugin>
    </plugins>
  </build>
  <profiles>
    <!-- Synchronizes karate versions with POM version -->
    <profile>
      <id>release-prepare</id>
      <build>
        <plugins>
          <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-scm-plugin</artifactId>
            <executions>
              <execution>
                <id>sync-karate-version</id>
                <phase>process-sources</phase>
              </execution>
            </executions>
          </plugin>
          <plugin>
            <groupId>org.codehaus.mojo</groupId>
            <artifactId>exec-maven-plugin</artifactId>
            <executions>
              <execution>
                <id>sync-karate-version</id>
                <phase>initialize</phase>
              </execution>
            </executions>
          </plugin>
        </plugins>
      </build>
    </profile>
  </profiles>
</project>

Update the maven-release-plugin plugin in the main pom to execute the karate versioning

  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-release-plugin</artifactId>
        ...
        <configuration>
          ...
          <!-- Karate release -->
          <preparationGoals>-Prelease-prepare clean verify</preparationGoals>
          <completionGoals>-pl karate-release exec:exec@sync-karate-version scm:add@sync-karate-version</completionGoals>
        </configuration>
      </plugin>
    </plugins>
  </build>
