Arrow Tool (deprecated)

Introduction

This action enables users to create new arrow nodes on the canvas.

Dependencies

This action needs registered on the Weave instance the following elements:

Arrow node
Line node

Usage

Import the Action

Start by importing the action:

import { WeaveArrowToolAction } from "@inditextech/weave-sdk";

Register the Action

Then register the action on the Weave class instance.

const instance = new Weave({
  ...
  actions: [
    ...,
    new WeaveArrowToolAction(), (1)
  ]
})

1	Added in this step.

Setup the action trigger

Setup on a button or any element on the UI the user can interact with on the action event:

instance.triggerAction("arrowTool");

For example on a button on React:

import React from "react";
import { useWeave } from "@inditextech/weave-react";

const MyArrowToolTriggerComponent = () => {
  const instance = useWeave((state) => state.instance);

  const triggerTool = React.useCallback(() => {
    instance.triggerAction("arrowTool");
  }, [instance]);

  return <button onClick={triggerTool}>Arrow Tool</button>;
};

Trigger the action

Finally a final user trigger the UI element that launches the action.

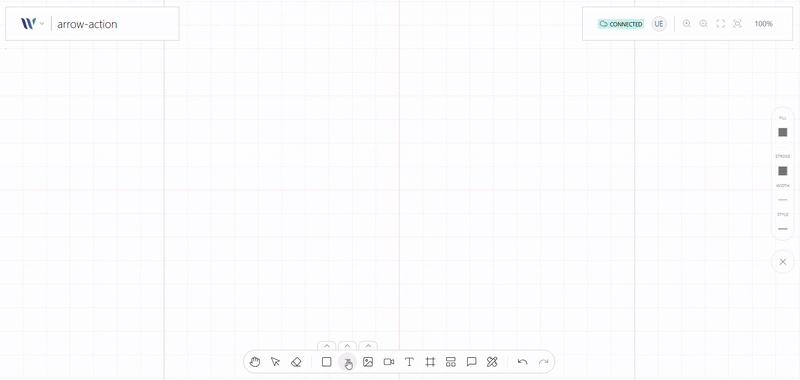

When the tool is active the user can:

Click or Touch on the canvas, to define an arrow segment start point.
Click or Touch again on the canvas, to define the arrow final segment point.

When the user is satisfied with the arrow segments:

On non-touch devices, press the Enter or Esc keys.
On touch devices, trigger the Selection Tool.

Then the arrow with the N defined segments is added to the canvas as a fully functional node—ready. This action integrates seamlessly with Weave.js’s real-time state system, ensuring the new element appears instantly for all connected users.
