Karate Open Api Generator - Functional Test

Karate Functional Test: Generates functional tests for the choosen combination of Open API paths and response codes. These tests are meant to verify the artifact end-points functionalities.

The generation steps are the following:
1. Enter the location of the Open Api definition
2. Select which Operations (path and method) you want to generate for
3. For each selected path and method, select the response code(s) to generate for
4. Select the artifactId you want to generate for
5. Enter the name of the test to generate
6. Select if the test will include inline mocks
After the automatic generation the tests should be updated regarding:
- operation steps order
- test data
- verification steps
- (if applicable) include steps for initial data (jdbc, mongodb, kafka, jms) using the 🛠️ Karate Clients
- (if applicable) include steps for additional checks (jdbc, mongodb, kafka, jms) using the 🛠️ Karate Clients

Execute open-api-generator - Functional Test

Execute open-api-generator and select generation mode "Functional Test".

mvn exec:java@open-api-generator

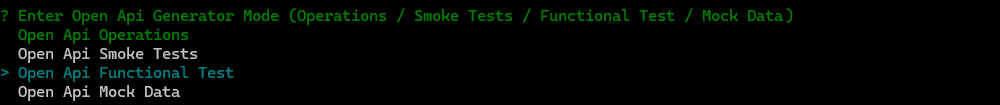

Select generation mode using the up/down arrows ↑ ↓ and afterwards intro to proceed ↲ to next step.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data

1. Enter the location of the Open Api definition

For generation mode Open Api Functional Test, the open-api-generator will search for the openapi-rest.yml files in the karate module folders and list them to be chosen for open-api-generation.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data

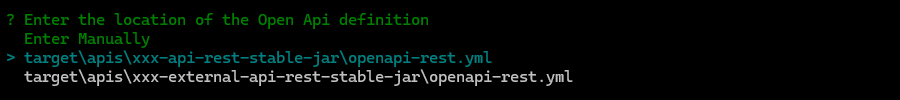

? Enter the location of the Open Api definition
  Enter Manually
> target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
  target\apis\xxx-external-api-rest-stable-jar\openapi-rest.yml

Select open api definiton using the up/down arrows ↑ ↓ and afterwards intro to proceed ↲ to next step.

It will also allow to enter the file location manually by selecting Enter Manually

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data
? Enter the location of the Open Api definition Enter Manually
? Enter the location of the Open Api definition (Enter Manually) target\apis\xxx-api-rest-stable-jar\openapi-rest.yml

If no Open Api file is provided or if the Open Api file is invalid an error will be displayed:

ERROR - Open Api file must be provided
ERROR - Open Api file must be valid

2. Select which Operations (path and method) you want to generate for

For the selected openapi-rest.yml file, the open-api-generator will list all the paths and methods which can be part of the functional test. You can select one or more, for example create + show + list.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml

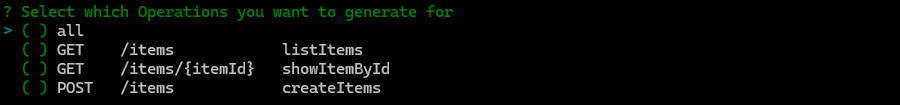

? Select which Operations you want to generate for
> (*) all
  ( ) GET    /items/{itemId}   showItemById
  ( ) POST   /items            createItems
  ( ) GET    /items            listItems

Select methods & paths using the up/down arrows ↑ ↓, mark/unmark the selection with space and afterwards intro to proceed ↲ to next step.

If no Operations are selected an error will be displayed:

ERROR - Operations to generate for must be selected

3. For each selected path and method, select the response code to generate for

For each selected path and method, the open-api-generator will list all the response codes defined. You must select which return code(s) you want to use in the functional test.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
? Select which Operations you want to generate for [POST   /items            createItems ]
? Enter the responses to generate for
POST   /items            createItems
> ( ) all
  ( ) 201
  ( ) 400
  ( ) default

Select response code(s) using the up/down arrows ↑ ↓, mark/unmark the selection with space and afterwards intro to proceed ↲ to next step.

If no Responses are selected an error will be displayed:

ERROR - Responses to generate for must be selected for all Operations

4. Select the artifactId you want to generate for

Once the operations are selected, the open-api-generator will list all the artifacts defined in the pom.xml to choose the target artifact for the functional test.

You must select the artifact Id of the Open Api (com.mypackage.api:xxx-api-rest-stable)

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
? Select which Operations you want to generate for [all]
? Enter the responses to generate for
POST   /items            createItems  [all]

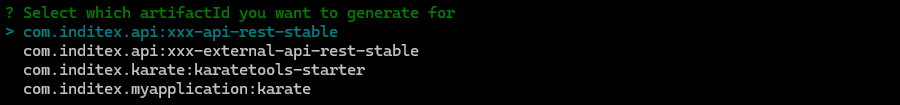

? Select which artifactId you want to generate for
> com.mypackage.api:xxx-api-rest-stable
  com.mypackage.api:xxx-external-api-rest-stable
  dev.inditex.karate:karatetools-starter
  com.mypackage:karate
  ...

Select artifactId using the up/down arrows ↑ ↓ and afterwards intro to proceed ↲ to next step.

5. Enter the name of the test to generate

Once the target artifact is selected, the open-api-generator will prompt to enter the test name for the functional test.

The test name allowed characters are: alpha numerical as well as - . and _.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
? Select which Operations you want to generate for [all]
? Enter the responses to generate for
GET    /items            listItems    200
? Enter the responses to generate for
GET    /items/{itemId}   showItemById 200
? Enter the responses to generate for
POST   /items            createItems  201
? Select which artifactId you want to generate for com.mypackage.api:xxx-api-rest-stable
? Enter the name of the test to generate (TestName) CreateShowListItems

If no Test Name is provided an error will be displayed:

ERROR - Test Name must be provided for functional tests

6. Select if the test will include inline mocks

Once the test name is entered, the open-api-generator will ask if the test will include inline mocks.

If inline mocks is selected the the open-api-generator will include in the test the Background Steps to load the mocks. The mocks should be generated following the instructions in Karate Open Api Generator - Mock Data also indicating that the generated mocks are inline and related to this functional test.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
  Open Api Smoke Tests
> Open Api Functional Test
  Open Api Mock Data
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
? Select which Operations you want to generate for [all]
? Enter the responses to generate for
GET    /items            listItems    200
? Enter the responses to generate for
GET    /items/{itemId}   showItemById 200
? Enter the responses to generate for
POST   /items            createItems  201
? Select which artifactId you want to generate for com.mypackage.api:xxx-api-rest-stable
? Enter the name of the test to generate CreateItemsWithInlineMocks
? Select if the test will include inline mocks (y/N)

Select inline mocks using keys y or n for YES/NO and afterwards intro to proceed ↲ to next step.

Review Generated functional test

For the functional test the open-api-generator generates:

feature file with the operations for the functional test with or without inline mocks
test data files with the test data for each of the selected operations and response codes.

The functional test files are generated in the folder src/test/resources/<API_PACKAGE>/functional organized by API Tags, for example: src/test/resources/com/mypackage/api/xxx-api-rest-stable/functional

Example of the structure of the generated functional test:

+---src
    \---test
        \---resources
            \---com
                \---mypackage
                    \---api
                        \---xxx-api-rest-stable
                            \---functional
                                +---CreateItems
                                |   |   CreateItems.feature
                                |   |
                                |   \---test-data
                                |           createItems_201.yml
                                |           createItems_400.yml
                                +---CreateItems
                                |   |   CreateItemsWithInlineMocks.feature
                                |   |
                                |   \---test-data
                                |           createItems_201.yml
                                \---CreateShowListItems
                                    |   CreateShowListItems.feature
                                    |
                                    \---test-data
                                            createItems_201.yml
                                            listItems_200.yml
                                            showItemById_200.yml

Functional test feature file

feature file with the karate code for the functional test with the following format

@functional
@op.<OPERATION_ID> @op.<OPERATION_ID> ...

Feature: <TEST_NAME>

Background:

<INLINE_MOCKS_STEPS_IF_APPLICABLE>

Scenario: <TEST_NAME>

# <OPERATION_ID>-<STATUS_CODE>
Given def <OPERATION_ID>Request = read('test-data/<OPERATION_ID>_<STATUS_CODE>.yml')
When def <OPERATION_ID>Response = call read('classpath:<OPERATION_FEATURE_CLASSPATH>') <OPERATION_ID>Request
Then match <OPERATION_ID>Response.responseStatus == <STATUS_CODE>

# <OPERATION_ID>-<STATUS_CODE>
Given def <OPERATION_ID>Request = read('test-data/<OPERATION_ID>_<STATUS_CODE>.yml')
When def <OPERATION_ID>Response = call read('classpath:<OPERATION_FEATURE_CLASSPATH>') <OPERATION_ID>Request
Then match <OPERATION_ID>Response.responseStatus == <STATUS_CODE>

...

The operation steps included in the functional test must be ordered to fulfill the test purpose.

The operation steps included in the functional test can be duplicated if needed to fulfill the test purpose. For example, if your e2e is POST, GET, DEL, GET you must duplicate the GET step

Examples:

Example of functional test without inline mocks steps CreateShowListItems.feature:

@functional
@op.createItems @op.listItems @op.showItemById

Feature: CreateShowListItems

Background:

Scenario: CreateShowListItems

# createItems-201
Given def createItemsRequest = read('test-data/createItems_201.yml')
When def createItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/createItems.feature') createItemsRequest
Then match createItemsResponse.responseStatus == 201

# showItemById-200
Given def showItemByIdRequest = read('test-data/showItemById_200.yml')
When def showItemByIdResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/showItemById/showItemById.feature') showItemByIdRequest
Then match showItemByIdResponse.responseStatus == 200

# listItems-200
Given def listItemsRequest = read('test-data/listItems_200.yml')
When def listItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/listItems/listItems.feature') listItemsRequest
Then match listItemsResponse.responseStatus == 200

Example of functional test without inline mocks multiple response codes for the same operation CreateItems.feature:

@functional
@op.createItems

Feature: CreateItems

Background:

Scenario: CreateItems

# createItems-201
Given def createItemsRequest = read('test-data/createItems_201.yml')
When def createItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/createItems.feature') createItemsRequest
Then match createItemsResponse.responseStatus == 201

# createItems-400
Given def createItemsRequest = read('test-data/createItems_400.yml')
When def createItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/createItems.feature') createItemsRequest
Then match createItemsResponse.responseStatus == 400

When generating multiple response codes for the same operation, the test can be easily split into multiple scenarios.

Example of functional test without inline mocks multiple response codes for the same operation CreateItems.feature in separated scenarios:

@functional
@op.createItems

Feature: CreateItems

Background:

Scenario: CreateItems-201

# createItems-201
Given def createItemsRequest = read('test-data/createItems_201.yml')
When def createItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/createItems.feature') createItemsRequest
Then match createItemsResponse.responseStatus == 201

Scenario: CreateItems-400

# createItems-400
Given def createItemsRequest = read('test-data/createItems_400.yml')
When def createItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/createItems.feature') createItemsRequest
Then match createItemsResponse.responseStatus == 400

Example of functional test with inline mocks steps CreateItemsWithInlineMocks.feature:

@functional
@op.createItems
@mock.templates.inline
@env=local

Feature: CreateItemsWithInlineMocks

Background:

* def getParentFolder =
  """
  function() {
    var path = karate.feature.prefixedPath;
    var parent = Java.type("java.nio.file.Paths").get(path.substring(path.indexOf(':') + 1)).getParent().toString();
    return parent.replaceAll("\\", "/")
  }
  """

# ###############################################
# Start Mock Server
# ###############################################
* karate.log('>> CreateItemsWithInlineMocks >> Background >> Start Mock')
* def mockTemplatesFolder = getParentFolder() + '/mocks'
* def mockPort = parseInt( karate.properties['KARATE_MOCK_SERVER_PORT'] || '58081' )
* def mockArgs = karate.getEngine().getAllVariablesAsMap()

* callonce read('classpath:mocks/mock-templates-inline.feature')
# ###############################################

Scenario: CreateItemsWithInlineMocks

# createItems-201
Given def createItemsRequest = read('test-data/createItems_201.yml')
When def createItemsResponse = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/createItems.feature') createItemsRequest
Then match createItemsResponse.responseStatus == 201

Functional test data files

test data files with the data needed for the execution of the functional test. For example:

createItems_201.yml:

---
operationId: "createItems"
statusCode: "201"
params: null
body:
  id: 0
  name: "string"
  tag: "string"
matchResponse: true
responseMatches: "#(read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/schema/createItems_201.schema.yml'))"

showItemById_200.yml:

---
operationId: "showItemById"
statusCode: "200"
params:
  itemId: 0
body: null
matchResponse: true
responseMatches: "#(read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/showItemById/schema/showItemById_200.schema.yml'))"

listItems_200.yml:

---
operationId: "listItems"
statusCode: "200"
params:
  limit: 0
body: null
matchResponse: true
responseMatches: "#(read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/listItems/schema/listItems_200.schema.yml'))"

The data (params, body) in each of the test data files must be updated to fulfill the test purpose.

If the api defines default response codes, the statusCode of the test data will be set to null and will require manual update.
