Karate Open Api Generator - Smoke Tests

Karate Smoke Tests: Generates smoke tests for each of the Open API defined paths and response codes. These tests are meant only to verify the artifact end-points are compliant (response codes and schemas) with their Open API definition.

  • The generation steps are the following:

    1. Enter the location of the Open Api definition

    2. Select which Smoke Tests you want to generate for

    3. Select the artifactId you want to generate for

  • After the automatic generation the tests data files should be updated to fullfil the purpose of each scenario.

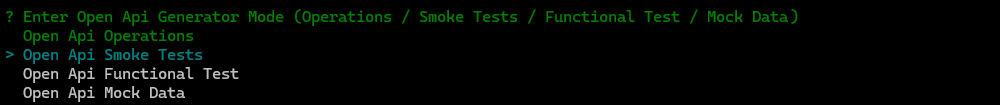

Execute open-api-generator - Smoke Tests

Execute open-api-generator and select generation mode "Smoke Tests".

mvn exec:java@open-api-generator
Select generation mode using the up/down arrows and afterwards intro to proceed to next step.
? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data)
  Open Api Operations
> Open Api Smoke Tests
  Open Api Functional Test
  Open Api Mock Data
open api generator cmd smoke

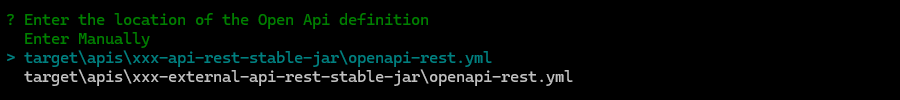

1. Enter the location of the Open Api definition

For generation mode Open Api Smoke Tests, the open-api-generator will search for the openapi-rest.yml files in the karate module folders and list them to be chosen for open-api-generation.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data) Open Api Smoke Tests
? Enter the location of the Open Api definition
  Enter Manually
> target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
  target\apis\xxx-external-api-rest-stable-jar\openapi-rest.yml
Select open api definiton using the up/down arrows and afterwards intro to proceed to next step.
open api generator cmd api

It will also allow to enter the file location manually by selecting Enter Manually

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data) Open Api Smoke Tests
? Enter the location of the Open Api definition Enter Manually
? Enter the location of the Open Api definition (Enter Manually) target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
open api generator cmd api manual

If no Open Api file is provided or if the Open Api file is invalid an error will be displayed:

  • ERROR - Open Api file must be provided

  • ERROR - Open Api file must be valid

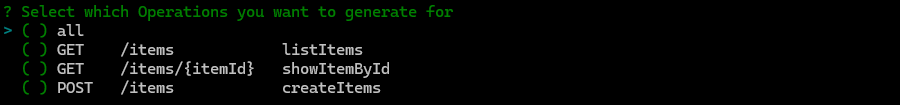

2. Select which Smoke Tests you want to generate for

For the selected openapi-rest.yml file, the open-api-generator will list all the paths and methods from which smoke tests can be generated. In an initial execution you should select them all. For Open Api updates you should only select the new or updated methods/paths.

? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data) Open Api Smoke Tests
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
? Select which Operations you want to generate for
> (*) all
  ( ) GET    /items/{itemId}   showItemById
  ( ) POST   /items            createItems
  ( ) GET    /items            listItems
Select methods & paths using the up/down arrows , mark/unmark the selection with space and afterwards intro to proceed to next step.
open api generator cmd methods

If no Operations are selected an error will be displayed:

  • ERROR - Operations to generate for must be selected

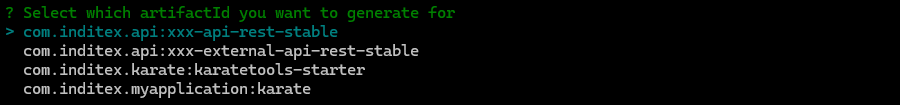

3. Select the artifactId you want to generate for

Once the operations are selected, the open-api-generator will list all the artifacts defined in the pom.xml to choose the target artifact for the smoke tests.

You must select the artifact Id of the Open Api (com.mypackage.api:xxx-api-rest-stable)
? Enter Open Api Generator Mode (Operations / Smoke Tests / Functional Test / Mock Data) Open Api Smoke Tests
? Enter the location of the Open Api definition target\apis\xxx-api-rest-stable-jar\openapi-rest.yml
? Select which Operations you want to generate for [all]
? Select which artifactId you want to generate for
> com.mypackage.api:xxx-api-rest-stable
  com.mypackage.api:xxx-external-api-rest-stable
  dev.inditex.karate:karatetools-starter
  com.mypackage:karate
  ...
Select artifactId using the up/down arrows and afterwards intro to proceed to next step.
open api generator cmd artifact

Review Generated smoke tests

For each smoke test the open-api-generator generates:

  • feature file with the smoke tests for the operation

  • test data files with the test data for each of the smoke tests

The smoke test files are generated in the folder src/test/resources/<API_PACKAGE>/smoke organized by API Tags, for example: src/test/resources/com/mypackage/api/xxx-api-rest-stable/smoke

Example of the structure of the generated smoke tests:

+---src
    \---test
        \---resources
            \---com
                \---mypackage
                    \---api
                        \---xxx-api-rest-stable
                            \---smoke
                                \---BasicApi
                                    +---createItems
                                    |   |   createItems.feature
                                    |   |
                                    |   \---test-data
                                    |           createItems_201.yml
                                    |           createItems_default.yml
                                    |
                                    +---listItems
                                    |   |   listItems.feature
                                    |   |
                                    |   \---test-data
                                    |           listItems_200.yml
                                    |           listItems_default.yml
                                    |
                                    \---showItemById
                                        |   showItemById.feature
                                        |
                                        \---test-data
                                                showItemById_200.yml
                                                showItemById_404.yml
                                                showItemById_default.yml

Smoke test feature file

feature file with the karate code for the smoke test with the following format

@smoke
@op.<OPERATION_ID>

Feature: <OPERATION_ID> Smoke Tests

Background:

Scenario Outline: <OPERATION_ID> <status>
* def req = call utils.readTestData <testDataFile>
* def result = call read('classpath:<OPERATION_FEATURE_CLASSPATH>') req
* match result.responseStatus == <status>
Examples:
| status  | testDataFile |
| <STATUS_CODE> | 'test-data/<OPERATION_ID>_<STATUS_CODE>.yml'

For example showItemById.feature:

@smoke
@op.showItemById

Feature: showItemById Smoke Tests

Background:

Scenario Outline: showItemById <status>
* def req = call utils.readTestData <testDataFile>
* def result = call read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/showItemById/showItemById.feature') req
* match result.responseStatus == <status>
Examples:
| status  | testDataFile |
| 200     | 'test-data/showItemById_200.yml' |
| 404     | 'test-data/showItemById_404.yml' |
| default | 'test-data/showItemById_default.yml' |
If the api defines default response codes, the status of the smoke feature will be set to default and will require manual update.

Smoke test data files

test data files with the data needed for the execution of each response code. For example:

  • createItems_201.yml:

    ---
    operationId: "createItems"
    statusCode: "201"
    params: null
    body:
      id: 0
      name: "string"
      tag: "string"
    matchResponse: true
    responseMatches: "#(read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/createItems/schema/createItems_201.schema.yml'))"
  • showItemById_200.yml:

    ---
    operationId: "showItemById"
    statusCode: "200"
    params:
      itemId: 0
    body: null
    matchResponse: true
    responseMatches: "#(read('classpath:apis/com/mypackage/api/xxx-api-rest-stable/BasicApi/showItemById/schema/showItemById_200.schema.yml'))"
The data (params, body) in each of the test data files must be updated to fulfill the test purpose.
If the api defines default response codes, the statusCode of the test data will be set to null and will require manual update.
